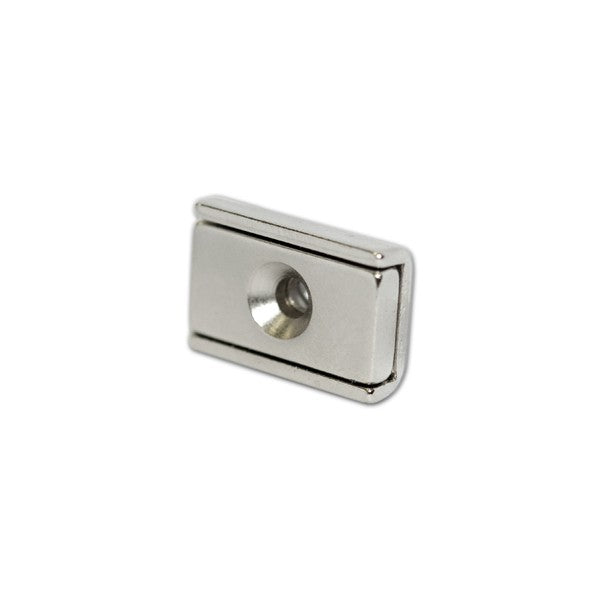

Neodymium Rectangular Pot Magnet with Countersunk Holes - 20mm x 13.5mm
Couldn't load pickup availability
Product details
- SKU AMFYPSNi20
-
Pull Force*
8 Kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight6.8 gm
- StyleRare Earth Countersunk Rectangular Pot Magnet
- CoatingNickel (NiCuNi)
- DimensionsOutside Diameter:6.5mm, Inside Diameter:3.3mm, Width:13.5mm, Height:5mm, Length:20mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rectangular pot magnet has a length of 20mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length from the centre of the hole to the edge of the magnet is 10mm. This magnet has a weight of 9.2g and a pull force of 8kg. It is identified by AMF Product Code AMFYPSNi20.
Uses for our Rare Earth Rectangular Countersunk Pot Magnets:
This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 20mm in length, 13.5mm wide, and 5mm in height with a single countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.
| Product Code | L | L1 | W | H | D1 | D2 | Weight | Pull Force |
| AMFYPSNI10 | 10mm | 5mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 4.5g | 4kg |
| AMFYPSNI20 | 20mm | 10mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 9.2g | 8kg |
| AMFYPSNI40 | 40mm | 30mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 18.4g | 17kg |
| AMFYPSNI60 | 60mm | 50mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 27.9g | 30kg |
| AMFYPSNI80 | 80mm | 70mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 37.8g | 33kg |
| AMFYPSNI100 | 100mm | 90mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 47.8g | 36kg |
| AMFYPSNI120 | 120mm | 110mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 56g | 40kg |
