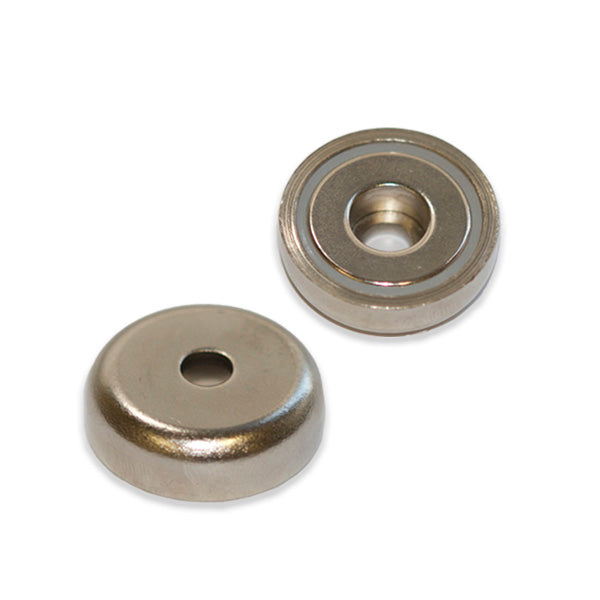

Neodymium Pot Magnet with Round Hole - 48mm x 11.5mm
Couldn't load pickup availability
Product details
- SKU AMFYPB48
-
Pull Force*
63 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight142.8 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 11.5mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 48mm and an inside diameter of 8.5mm with an internal flange hole of 15mm. This round hole pot magnet has a thickness of 11.5mm, a pull force of 63kg and a weight of 114 grams. It is identified by the AMF magnet part number AMFYPB48.
Uses for our rare earth round hole pot magnets:
These Neodymium Pot Magnets have a round hole making them easy to attach using a bolt or by slotting them onto a protruding rod in a mechanical apparatus. The internal magnet is protected by a steel cap which enhances the magnetic field through the front face and reducing the magnetic field produced through the reverse side. This also means the pull-force of a pot magnet is stronger than a standard magnet. Popular with people working in the farming and mining sectors, these magnets have a robust and reliable hold that makes them ideal for people working with heavy machinery or in dynamic work environments.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
