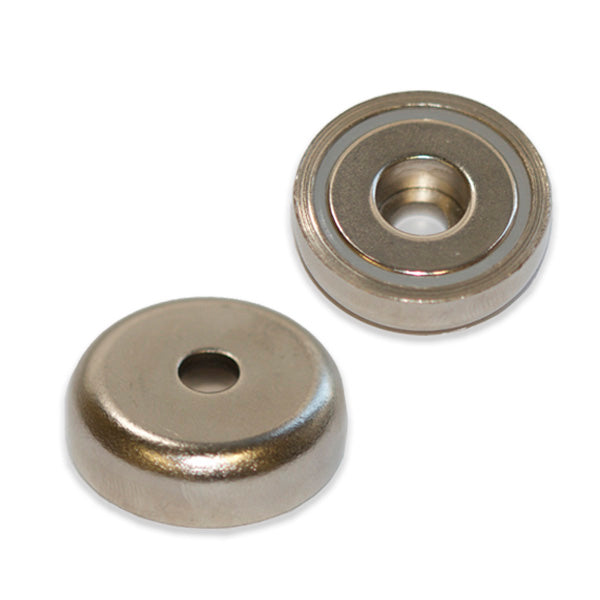

Neodymium Pot Magnet with Round Hole - 75mm x 18mm
Couldn't load pickup availability
Product details
- SKU AMFYPB75
-
Pull Force*
155 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight585 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 18mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 75mm and an inside diameter of 10.5mm with an internal flange hole of 18mm. This round hole pot magnet has a thickness of 18mm, a pull force of 155kg and a weight of 471 grams. It is identified by the AMF magnet part number AMFYPB75.
Uses for our rare earth round hole pot magnets:
Our Rare Earth Holding Pot magnets with Round Holes consist of a powerful Neodymium magnet set in a mild steel cap. This cap protects the brittle magnet within from chipping or cracking, furthermore, the protective cover affects the magnetic field, projecting it downward to the base, so both North and South poles have some presence at the base or holding surface. The pull force on the opposite side is reduced and effectively creates a single-sided magnet that is highly beneficial in applications where any stray magnetic field is undesirable. These Pot magnets provide an easy non-invasive solution for attaching and suspending metal objects to just about any surface.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
