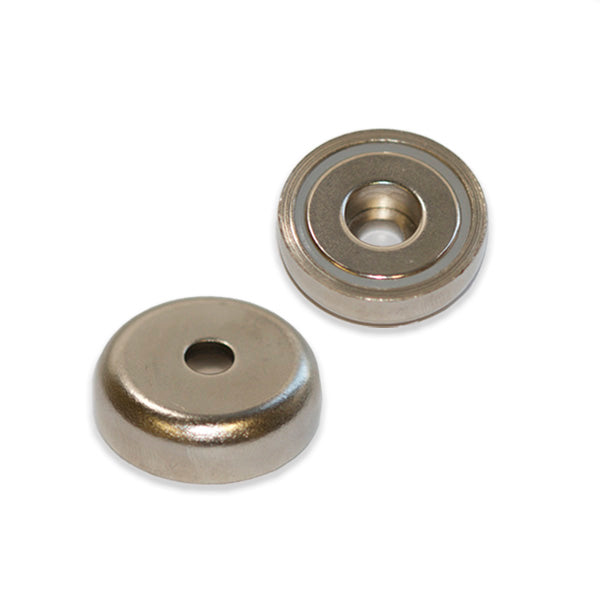

Neodymium Pot Magnet with Round Hole - 42mm x 9mm
Couldn't load pickup availability
Product details
- SKU AMFYPB42
-
Pull Force*
32 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight73 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 9mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 42mm and an inside diameter of 6.5mm with an internal flange hole of 11mm. This round hole pot magnet has a thickness of 9mm, a pull force of 32kg and a weight of 73 grams. It is identified by the AMF magnet part number AMFYPB42.
Uses for our rare earth round hole pot magnets:
Our holding pot magnets are high strength Neodymium magnets encased in a mild steel cap for extra protection against cracking and chipping. The robust nature of these pot magnets means they can be used in a wide array of applications and are highly sought after by those working with steel on an industrial scale. Their reliable strength and durability make them perfect for people who are handling and transporting steel on a regular basis. The protective steel cup augments the magnetic field through the front face whilst diminishing the stray field produced, effectively making this a single-sided magnet.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
