Stainless Steel Neodymium Pot Magnet with M6 Male Thread - D25mm x 17mm | 9mm External Boss
Couldn't load pickup availability
Product details
- SKU AMFYPC25/SS
-
Pull Force*
12 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight30g
- StyleRare Earth Male Thread Pot Magnet
- CoatingStainless Steel
- Direction of MagnetisationAxially Magnetised Through Height
Buying in Bulk?
Contact Us for Wholesale Pricing

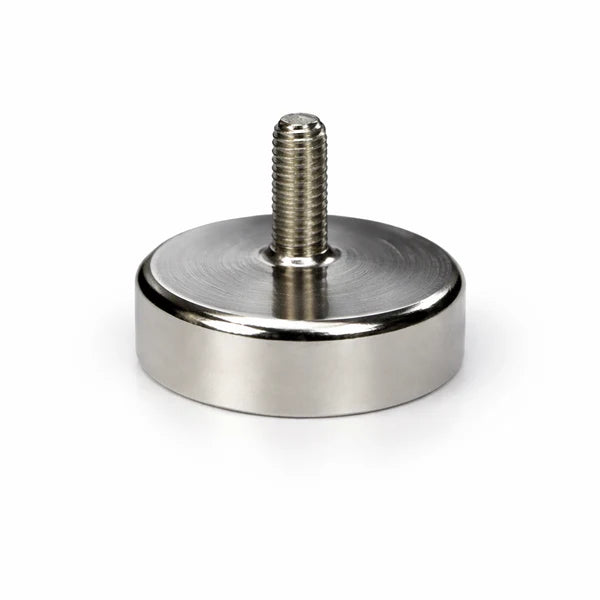

This Stainless Steel Neodymium Male Threaded Pot Magnet combines the exceptional holding power of a rare earth neodymium magnet with the durability and corrosion resistance of a stainless steel cup. Designed for demanding commercial, industrial and outdoor applications, it provides a strong, reliable magnetic mounting solution where conventional magnets may deteriorate over time.
The magnet features a 25mm diameter magnetic base, an overall height of 17mm, and an 8mm-thick stainless steel housing. An M6 male threaded stud with a 9mm external boss allows for fast and secure attachment to brackets, fixtures, machinery, hooks, eye bolts and custom assemblies.
Despite weighing only 30 grams, this permanent magnet delivers an impressive 12kg maximum pull force under ideal conditions when attached to a clean, thick, flat steel surface.
Key Features
- Powerful rare earth Neodymium (NdFeB) magnet
- Corrosion-resistant stainless steel pot housing
- 25mm diameter magnetic base
- 17mm overall height
- 8mm housing thickness
- M6 male threaded stud with 9mm external boss
- Up to 12kg pull force under ideal conditions
- Lightweight design at just 30g
- Permanent magnet requiring no power source
- Concentrated magnetic field for maximum holding performance
