Neodymium Pot Magnet with Threaded Eyelet - 16mm x 4mm

Neodymium Threaded Magnetic Pot Description:

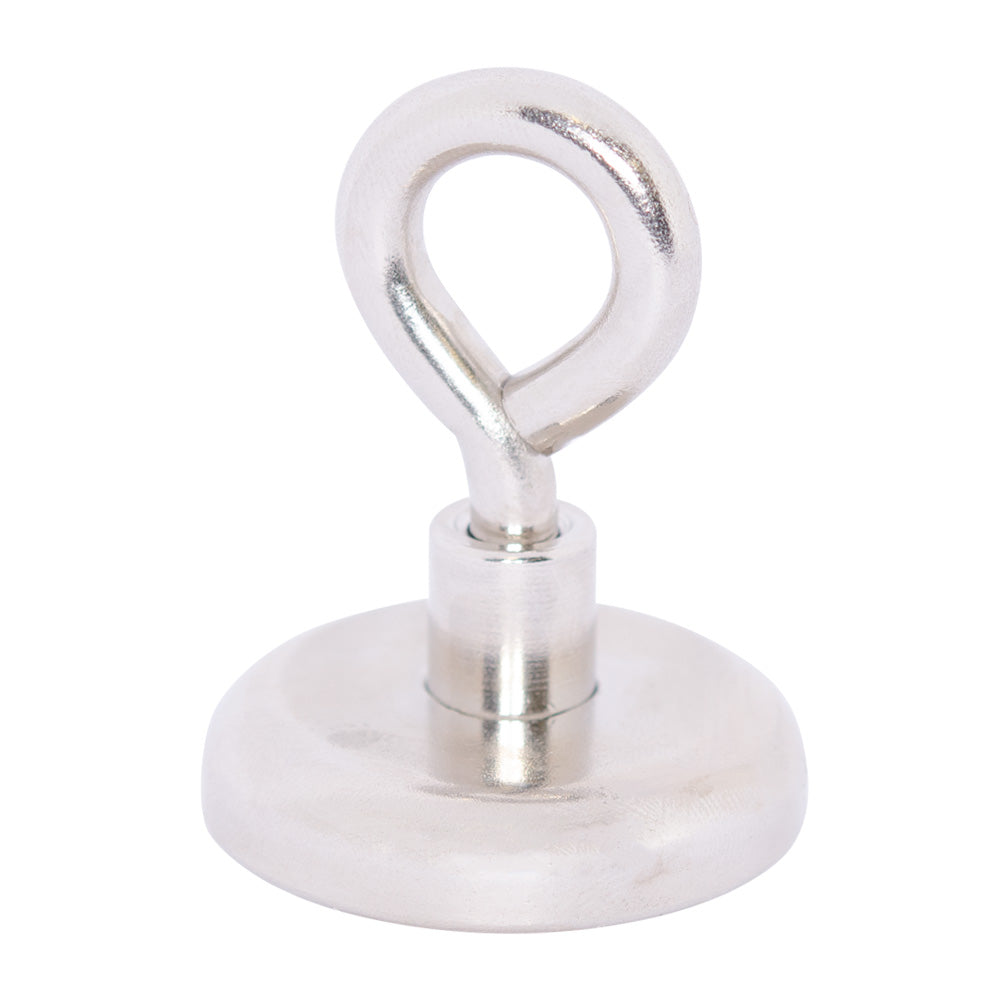

This Rare Earth Holding Magnet has an m4 thread with a 4mm eyelet attachment. Made from Neodymium Rare Earth magnetic material it has a powerful holding force. It has a weight of 11grams and pull strength of 5.5kg. AMFYPF16 Rare Earth Pot Magnet has a diameter of 16mm, a total height of 14mm and a magnet housing thickness of 5mm.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

Neodymium Pot Magnets incorporate the high strength of the Rare Earth permanent magnets with the versatility of an attachable element. These holding pot magnets come with a removable eyelet which can be screwed into the thread so that you can attach almost anything.
The strong Neodymium magnets itself is capped in mild steel, leaving the magnetic side exposed. This manipulates the magnetic field and projects it to the exposed base, amplifying the pull force. This casing also protects the magnet from impact damage which is a common occurrence for Neodymium magnets due to their brittle nature.
Theis eyelet variation of the Pot Magnet is common in industries including manufacturing, mine sites and construction sites. They are frequently used to suspend an item from a metal surface or to keep wires, cables or dangerous materials away from hazardous or unsafe locations. This product is a great temporary or permanent solution to a range of storage issues in workshops and at home.

Pull Force:

The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
