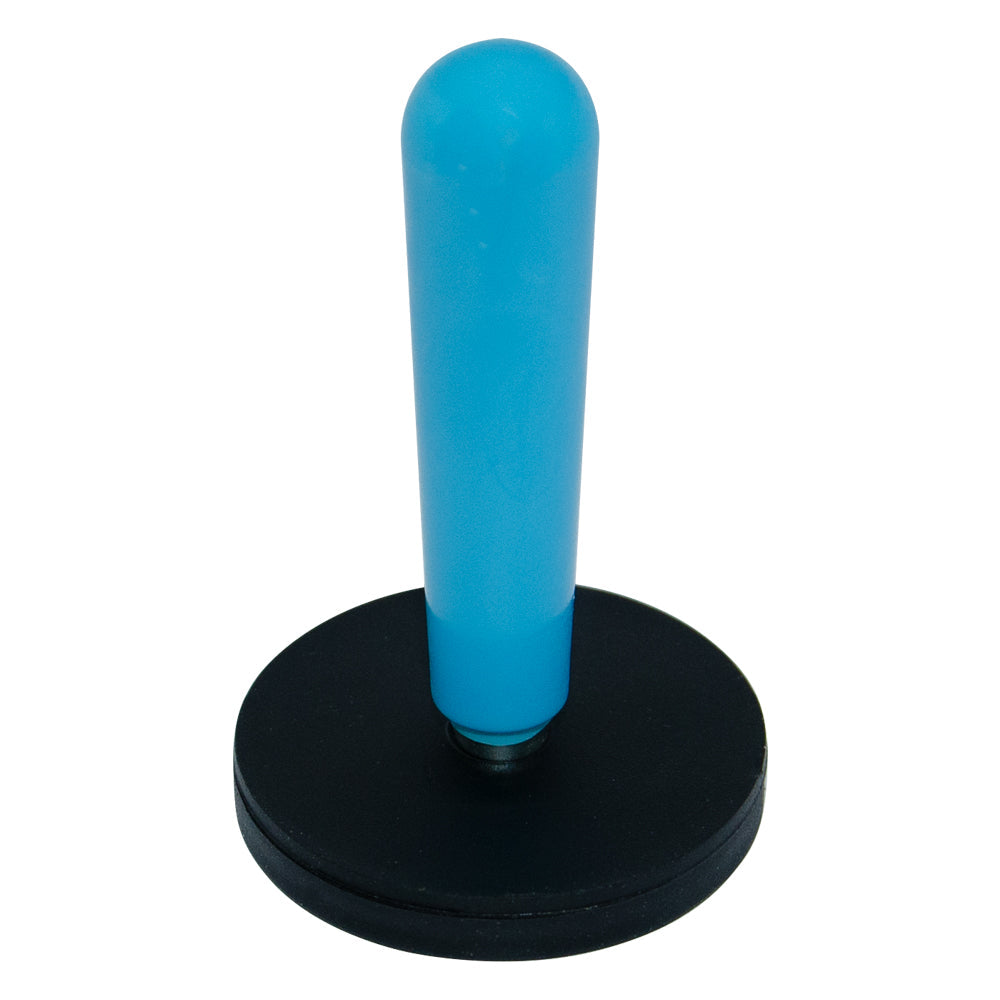

Neodymium Rubber Coated Female Thread Pot Magnet with Handle | 43mm Diameter x 60mm

The Neodymium Rubber Coated Female Thread Pot Magnet with Handle – 43mm Diameter x 60mm is a compact rare earth magnetic holding, mounting and positioning solution designed for removable attachment to compatible ferromagnetic steel surfaces. Featuring a 43mm diameter rubber-coated magnetic base, a female threaded connection and an integrated handle, this magnetic assembly provides convenient handling while allowing equipment, fixtures and accessories to be positioned without permanently drilling or welding into the supporting steel.

The magnetic base incorporates high-performance Neodymium Iron Boron (NdFeB) permanent magnetic material in a pot-style assembly. Its rubber coating helps reduce direct metal-to-metal contact with the mounting surface while increasing friction to help resist sliding in many vertical and angled mounting applications.

With a supplied overall dimension of 60mm, this compact magnetic handle is well suited to workshops, industrial machinery, manufacturing equipment, displays, temporary fixtures, maintenance applications and OEM magnetic mounting systems where convenient removal and repositioning are important.

Key Features

• 43mm diameter magnetic base
• 60mm overall dimension
• Neodymium Iron Boron (NdFeB) rare earth magnet
• Rubber-coated pot-style magnetic base
• Female / internal threaded connection
• Integrated handle for convenient positioning
• Removable and repositionable magnetic attachment
• Rubber coating helps protect compatible mounting surfaces
• Increased surface friction helps resist sliding
• No drilling or welding into the supporting steel required
• Permanent magnetic operation
• No batteries or electrical power required
• Suitable for compatible ferromagnetic iron and steel

Common Applications

• Industrial equipment
• Workshop fixtures
• Manufacturing machinery
• Temporary mounting
• Removable fixtures
• Equipment positioning
• Signage and displays
• Production-line accessories
• Maintenance equipment
• Machinery attachments
• Prototyping
• OEM assemblies
• Custom magnetic mounting systems

43mm Rubber-Coated Magnetic Base

The 43mm diameter magnetic base provides a compact footprint for mounting to suitable ferromagnetic steel.

The rubber coating creates an interface between the magnetic assembly and the mounting surface. Depending on the application, this can help:

• Reduce direct metal-to-metal contact
• Protect compatible surfaces from marking
• Increase friction between the magnet and steel
• Improve resistance to sliding
• Provide a more controlled mounting interface

Surface protection cannot be guaranteed. Metal particles, grit or other contamination trapped between the rubber coating and mounting surface may still cause scratching or damage.

Integrated Handle

The handle provides a convenient grip for installing, removing and repositioning the magnetic assembly.

This can be particularly useful for magnetic mounting points that need to be:

• Frequently repositioned
• Installed temporarily
• Moved between work areas
• Adjusted during equipment setup
• Removed after a task is completed
• Handled without gripping the magnetic base directly

The combination of the compact 43mm magnetic base and handle makes the assembly suitable for applications where both magnetic attachment and convenient manual handling are required.

Female Threaded Connection

The magnetic base incorporates a female or internal threaded connection, providing a mechanical interface for the handle and potentially other compatible externally threaded components.

Depending on the application, female-threaded pot magnets can be integrated with suitable:

• Handles
• Threaded studs
• Bolts
• Brackets
• Fixtures
• Equipment components
• Custom accessories

The specific thread size and thread depth have not been supplied for this product and should be confirmed before fitting alternative threaded components.

Correct thread engagement is important. Avoid overtightening or bottoming threaded components against the magnetic assembly.

Neodymium Rare Earth Magnet

The magnetic base incorporates Neodymium Iron Boron (NdFeB), a high-performance rare earth permanent magnetic material known for providing strong magnetic attraction relative to its size.

This allows compact magnetic mounting assemblies to provide useful holding performance without requiring an electrical supply.

As a permanent magnet, it requires:

• No batteries
• No charging
• No electrical wiring
• No external power

The magnet remains continuously active.

Removable and Repositionable Magnetic Mounting

This magnetic handle can create a temporary mounting point on compatible steel without permanently modifying the supporting surface.

Potential advantages include:

• Quick installation
• Easy removal
• Convenient repositioning
• No drilling into supporting steel
• No welding to the supporting structure
• Reusable magnetic attachment
• Flexible equipment configuration

This makes the assembly particularly useful for temporary fixtures, prototypes and equipment that is regularly reconfigured.

Magnetic Holding Performance

For strongest practical attraction, the magnetic base should make close, flat contact with clean and sufficiently thick ferromagnetic steel.

Actual holding performance depends on factors including:

• Steel thickness
• Steel composition
• Surface flatness
• Contact area
• Paint and protective coatings
• Rust
• Dirt and contamination
• Air gaps
• Mounting orientation
• Applied load direction
• Vibration
• Dynamic movement
• Leverage from the handle

No specific pull force or Gauss rating has been supplied for this product. Magnetic holding capacity should therefore not be inferred solely from the 43mm diameter or neodymium construction.

Direct Pull vs Shear Loads

Magnetic holding performance varies according to the direction in which force is applied.

A force acting directly away from the magnetic working face creates a different loading condition from a downward force on a magnet mounted vertically.

Vertical mounting typically introduces shear or sliding forces, which can result in lower practical holding performance than direct pull.

The rubber coating helps increase friction and resistance to sliding in many applications, but it does not guarantee a particular vertical holding capacity.

Handle Leverage

The handle can introduce leverage when sideways or angled force is applied.

Because the assembly has an overall dimension of 60mm, force applied towards the end of the handle may create greater leverage at the magnetic base than force applied close to the mounting surface.

This should be considered when using the magnetic handle for positioning, pulling or supporting attached components.

Avoid sudden sideways impacts or excessive leverage that could cause the magnetic base to detach unexpectedly.

Compatible Mounting Surfaces

This magnetic assembly is designed to attach to compatible ferromagnetic iron and steel.

Potential mounting surfaces include:

• Mild steel
• Iron
• Steel machinery
• Ferromagnetic equipment housings
• Steel work surfaces
• Compatible steel structures

The magnet will not attach effectively to non-ferromagnetic materials such as aluminium, copper, brass, timber, plastic or glass.

Many grades of stainless steel also provide little or no magnetic attraction and should be tested before use.

Technical Specifications

• Product Type: Neodymium Rubber Coated Female Thread Pot Magnet with Handle
• Alternative Names: Magnetic Handle, Rubber Coated Handle Magnet, Female Thread Pot Magnet, Neodymium Magnetic Handle, Rare Earth Magnetic Mount
• Magnetic Material: Neodymium Iron Boron (NdFeB)
• Magnet Type: Rare Earth Permanent Pot Magnet
• Magnetic Base Diameter: 43mm
• Overall Dimension: 60mm
• Magnetic Base: Rubber Coated
• Thread Type: Female / Internal
• Handle: Included
• Magnetic Operation: Permanent
• Power Required: None
• Target Surface: Compatible ferromagnetic iron and steel
• Primary Function: Removable magnetic holding, mounting and positioning

Industrial and Workshop Applications

The combination of a 43mm rubber-coated neodymium base and integrated handle makes this assembly useful for industrial and general-purpose applications requiring convenient magnetic attachment.

Potential users include:

• Manufacturers
• Mechanical workshops
• Maintenance teams
• Equipment builders
• Fabricators
• Production facilities
• Engineering businesses
• Signage manufacturers
• OEM equipment manufacturers

Its removable design can be particularly useful where equipment needs to be regularly moved, adjusted or reconfigured.

Installation and Handling

Before attaching the magnetic handle:

• Confirm the target surface is ferromagnetic
• Clean the steel mounting surface
• Check the rubber magnetic face for trapped grit or metal particles
• Place the magnetic base flat against the steel
• Maximise contact with the target surface
• Consider the direction of the applied load
• Avoid excessive sideways leverage
• Account for vibration and dynamic movement
• Inspect the rubber coating periodically for wear

When removing or repositioning the assembly, maintain controlled handling and prevent the magnet from snapping suddenly onto nearby steel objects.

Please Note

This product features a 43mm diameter rubber-coated neodymium magnetic base, female threaded connection and handle, with a supplied overall dimension of 60mm.

No specific female thread size, thread depth, neodymium grade, pull force, Gauss rating, rubber composition, maximum operating temperature or dimensional tolerance has been supplied and these specifications should not be assumed.

The rubber coating helps reduce direct metal-to-metal contact and increases friction, but it does not guarantee that mounting surfaces will remain scratch-free. Keep the magnet and target surface clean during use.

Actual magnetic holding performance depends on target steel thickness and composition, contact area, surface condition, coatings, air gaps, mounting orientation, load direction, leverage, vibration and dynamic forces.

Do not use this magnetic handle for lifting people, hazardous overhead suspension or safety-critical load retention unless the complete system has been appropriately engineered, tested and rated for that purpose.

Neodymium magnetic material is powerful and inherently brittle. Keep strong magnets away from children, pacemakers and other medical implants, magnetic storage media and sensitive electronic equipment.
