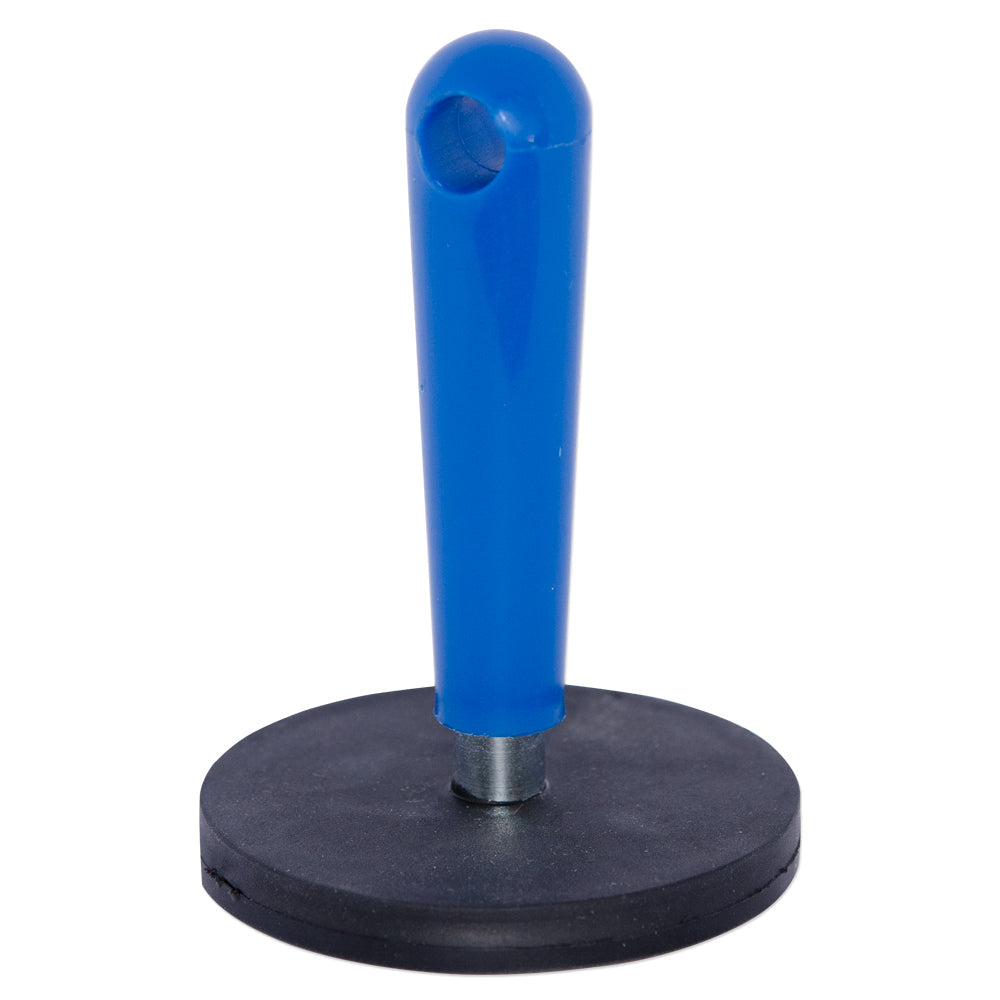

Neodymium Rubber Coated Female Thread Pot Magnet with Blue Handle – 66mm Diameter x 92mm

The Neodymium Rubber Coated Female Thread Pot Magnet with Blue Handle – 66mm Diameter x 92mm is a versatile rare earth magnetic holding and positioning tool designed for removable attachment to compatible ferromagnetic steel surfaces. Featuring a 66mm diameter rubber-coated magnetic base, female threaded connection and distinctive blue handle, this magnetic assembly provides a convenient way to position, hold and relocate compatible items without permanently drilling or welding into the supporting steel surface.

The magnetic base incorporates high-performance Neodymium Iron Boron (NdFeB) permanent magnetic material in a pot-style assembly. Its rubber coating helps protect the mating surface from direct metal-to-metal contact while also increasing friction to help resist sliding, particularly on vertical steel surfaces.

With an overall dimension of 92mm and an integrated blue handle, this magnetic mounting solution is well suited to industrial, workshop, manufacturing, equipment, display and general-purpose applications where convenient handling and repositionable magnetic attachment are required.

Key Features

• 66mm diameter magnetic base
• 92mm overall dimension
• Neodymium Iron Boron (NdFeB) rare earth magnet
• Rubber-coated pot-style magnetic base
• Integrated female threaded connection
• Supplied with blue handle
• Convenient handle for positioning and removal
• Rubber coating helps protect compatible mounting surfaces
• Increased friction helps resist sliding
• Removable and repositionable magnetic attachment
• No drilling or welding into the supporting steel surface required
• Permanent magnet requiring no electrical power
• Suitable for compatible ferromagnetic iron and steel

Common Applications

• Industrial equipment
• Workshop fixtures
• Manufacturing
• Machinery accessories
• Temporary mounting
• Removable fixtures
• Positioning applications
• Signage and displays
• Equipment setup
• Production environments
• Custom magnetic assemblies
• OEM equipment
• General-purpose magnetic holding

66mm Rubber-Coated Magnetic Base

The 66mm diameter magnetic base incorporates powerful neodymium magnetic material within a pot-style assembly.

The rubber coating provides an additional interface between the magnetic assembly and the target surface.

Benefits of the rubber coating include:

• Reduced direct metal-to-metal contact
• Improved resistance to scratching on suitable clean surfaces
• Increased friction between the magnet and mounting surface
• Improved resistance to sliding compared with a smooth metal magnetic base in many applications

Surface protection cannot be guaranteed. Dirt, grit or metal particles trapped between the magnet and mounting surface may still cause scratching or damage.

Blue Handle for Convenient Positioning

The integrated blue handle provides a convenient grip for handling and repositioning the magnetic assembly.

This can be particularly useful where a magnetic mounting point needs to be:

• Frequently installed and removed
• Repositioned between locations
• Adjusted during equipment setup
• Temporarily attached to steel machinery
• Handled without gripping the magnetic base directly

The handle also makes the magnetic assembly easier to identify and manipulate in workshop and industrial environments.

Female Threaded Magnetic Connection

The magnetic base incorporates a female threaded connection, allowing the handle or other compatible externally threaded components to be attached to the magnetic base.

Female-thread pot magnets provide a versatile mechanical interface for magnetic mounting systems and can potentially be integrated with suitable:

• Handles
• Threaded studs
• Bolts
• Brackets
• Fixtures
• Equipment components
• Custom accessories

A specific female thread size and thread depth have not been supplied for this product and should be confirmed before fitting alternative threaded components.

Neodymium Rare Earth Magnetic Performance

The magnetic base incorporates Neodymium Iron Boron (NdFeB), a high-performance rare earth permanent magnetic material known for producing strong magnetic fields relative to its size.

Because neodymium is permanently magnetised, this assembly requires:

• No batteries
• No charging
• No electrical wiring
• No external power supply

The magnetic field remains continuously active.

For strongest practical attraction, the magnetic base should make close contact with clean, flat and sufficiently thick ferromagnetic steel.

Removable and Repositionable Magnetic Mounting

One of the main advantages of this magnetic handle assembly is its ability to provide temporary attachment without permanently modifying the supporting steel.

The magnetic base can be attached, removed and repositioned as requirements change.

This can be useful for:

• Temporary fixtures
• Adjustable equipment
• Production setups
• Workshop accessories
• Removable displays
• Machinery attachments
• Prototypes
• Frequently repositioned components

No holes need to be drilled into the supporting steel and no welding is required for magnetic attachment.

Rubber Coating and Shear Resistance

When a magnet is attached to a vertical surface, the load tends to pull the magnetic assembly downwards rather than directly away from the steel.

This creates a shear or sliding load.

The rubber coating can increase friction between the magnetic base and target surface, helping the assembly resist sliding compared with a smooth metal contact surface in many circumstances.

However, practical shear performance still depends on factors such as:

• Surface condition
• Steel type
• Coatings
• Contamination
• Applied load
• Leverage
• Vibration
• Movement
• Orientation

The rubber coating should not be interpreted as guaranteeing a particular vertical holding capacity.

Magnetic Holding Performance

Actual magnetic holding performance depends on the complete installation.

Important factors include:

• Steel thickness
• Steel composition
• Surface flatness
• Contact area
• Rubber coating thickness
• Paint or protective coatings
• Rust
• Dirt and contamination
• Air gaps
• Direction of applied force
• Vibration and movement
• Leverage from the handle or attached component

No specific pull force or Gauss rating has been supplied for this product, so maximum holding capacity should not be inferred from the 66mm diameter or neodymium construction.

Direct Pull vs Shear Loads

Magnetic holding is generally strongest when force acts directly away from the magnetic working face.

This is different from a magnet attached to a vertical steel surface where gravity creates a downward shear force.

As a result, direct-pull performance should not automatically be used to determine how much weight a magnetic assembly can safely support vertically.

The 92mm overall dimension and handle can also create leverage when sideways force is applied. This leverage may make the magnetic base easier to detach than under a straight direct-pull test.

Compatible Mounting Surfaces

This magnetic assembly is designed for attachment to compatible ferromagnetic iron and steel surfaces.

Potential mounting surfaces include:

• Mild steel
• Iron
• Steel machinery
• Steel equipment housings
• Ferromagnetic work surfaces
• Suitable steel structures

It will not magnetically attach to materials such as:

• Aluminium
• Copper
• Brass
• Timber
• Plastic
• Glass

Many stainless steel grades also provide little or no magnetic attraction and should be tested before use.

Technical Specifications

• Product Type: Neodymium Rubber Coated Female Thread Pot Magnet with Handle
• Alternative Names: Magnetic Handle, Rubber Coated Handle Magnet, Female Threaded Pot Magnet, Neodymium Magnetic Handle, Rare Earth Magnetic Mount
• Magnetic Material: Neodymium Iron Boron (NdFeB)
• Magnet Type: Rare Earth Permanent Pot Magnet
• Magnetic Base Diameter: 66mm
• Overall Dimension: 92mm
• Magnetic Base: Rubber Coated
• Thread Type: Female / Internal
• Handle: Blue
• Power Requirement: None
• Target Surface: Compatible ferromagnetic iron and steel
• Primary Function: Removable magnetic holding, mounting and positioning
• Typical Applications: Workshops, manufacturing, machinery, equipment and temporary fixtures

Industrial and Workshop Applications

The combination of a 66mm rubber-coated magnetic base and easy-grip blue handle makes this assembly useful for applications where magnetic attachment needs to be frequently installed or repositioned.

Potential users include:

• Manufacturers
• Mechanical workshops
• Maintenance teams
• Fabricators
• Equipment builders
• Production facilities
• Engineering businesses
• OEM manufacturers

The handle provides convenient manual control while the magnetic base provides attachment to compatible steel surfaces.

Installation and Handling

Before attaching the magnet:

• Confirm the target surface is ferromagnetic
• Clean the steel surface
• Check the rubber magnetic face for trapped metal particles or grit
• Place the magnetic base flat against the steel
• Maximise contact between the magnet and target surface
• Consider the direction of the applied load
• Avoid excessive sideways leverage on the handle
• Account for vibration or movement
• Inspect the rubber coating periodically for wear or damage

When removing the magnet, use controlled force and avoid allowing the assembly to snap onto nearby steel surfaces.

Please Note

This product features a 66mm diameter rubber-coated neodymium magnetic base, female threaded connection and blue handle, with a supplied overall dimension of 92mm.

No specific female thread size, thread depth, neodymium grade, pull force, Gauss rating, rubber material, coating thickness, dimensional tolerance or maximum operating temperature has been provided and these specifications should not be assumed.

The rubber coating helps reduce direct metal-to-metal contact and can improve friction, but it does not guarantee that delicate surfaces will remain scratch-free. Always ensure the magnet and target surface are clean before use.

Actual magnetic holding performance depends on the target steel, contact conditions, load direction, surface coatings, leverage, vibration and operating environment.

Do not use this magnetic handle assembly for lifting people, hazardous overhead suspension or safety-critical load retention unless the complete system has been appropriately engineered, tested and rated for that purpose.

Keep powerful neodymium magnets away from children, pacemakers and other medical implants, magnetic storage media and sensitive electronic equipment.
