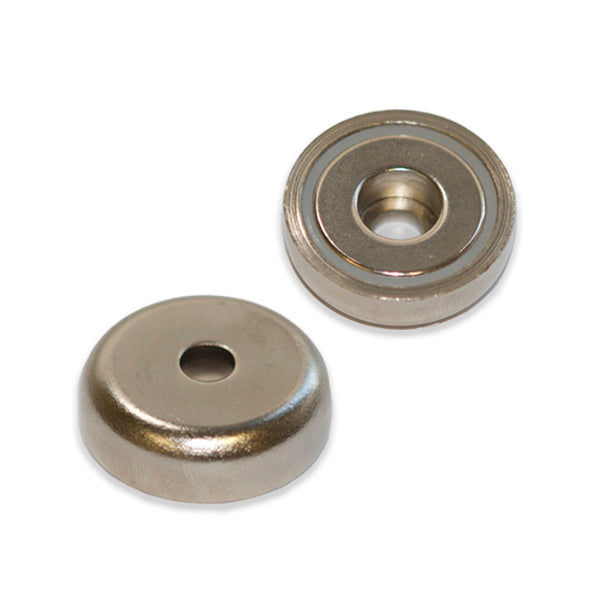

Neodymium Pot Magnet with Round Hole - 60mm x 15mm
Couldn't load pickup availability
Product details
- SKU AMFYPB60
-
Pull Force*
95 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight288 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 15mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 60mm and an inside diameter of 8.5mm with an internal flange hole of 15mm. This round hole pot magnet has a thickness of 15mm, a pull force of 95kg and a weight of 240 grams. It is identified by the AMF magnet part number AMFYPB60.
Uses for our rare earth round hole pot magnets:
These Holding Pot Magnets are high strength Neodymium magnets in a mild steel cap on which provides extra protection against chipping or cracking. The steel cup also serves to curve the magnetic field, projecting it out the active face of the magnet and thereby enhancing the strength of the active face whilst reducing the field on the opposite face. This creates a single-sided magnet that is highly beneficial in applications where any stray magnetic field could be problematic. These rare earth holding pot magnets have a round hole and are often used when a bolt and nut is the most appropriate way to position the magnet.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
