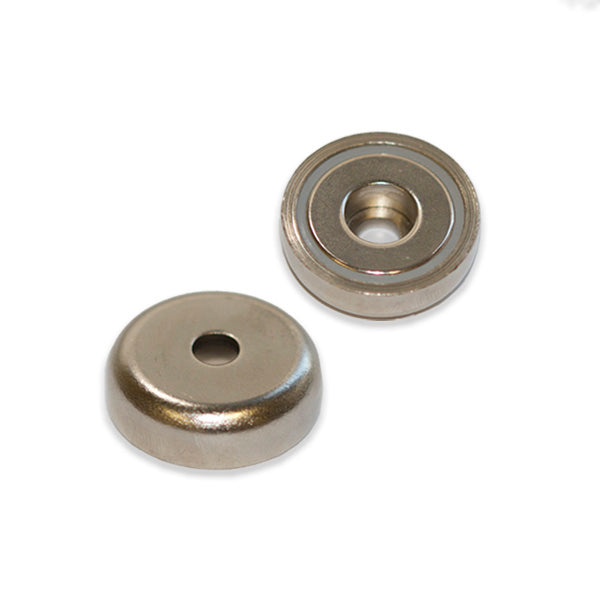

Neodymium Pot Magnet with Round Hole - 36mm x 9mm
Couldn't load pickup availability
Product details
- SKU AMFYPB36
-
Pull Force*
29 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight51.06 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised through the 9mm thickness
- DimensionsThickness:9mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 36mm and an inside diameter of 6.5mm with an internal flange hole of 11mm. This round hole pot magnet has a thickness of 9mm, a pull force of 29kg and a weight of 50 grams. It is identified by the AMF magnet part number AMFYPB36.
Uses for our rare earth round hole pot magnets:
These Neodymium Pot Magnets have a round hole making them more versatile, able to be attached with a simple bolt or integrated into a more complex mechanical system. The protective cap is made of mild steel and serves to decrease the risk of cracks and chips forming in the magnet when under heavy use. The casing also increases the magnetic power of the magnets as the field is amplified through the magnetic face of the magnet and minimised on the reverse side. This magnet is popular with industrial equipment fabricators for a variety of mechanical applications such as industrial shutters, security screens and automated guidance tracks.
Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
