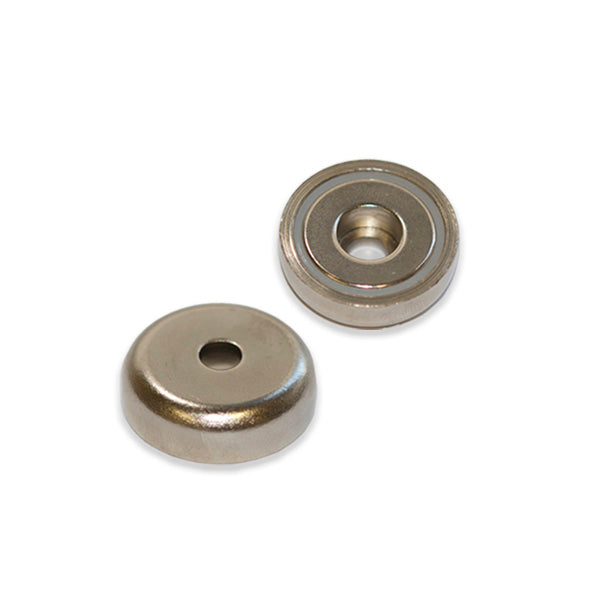

Neodymium Pot Magnet with Round Hole - 25mm x 8mm
Couldn't load pickup availability
Product details
- SKU AMFYPB25
-
Pull Force*
14 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight24.8 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 8mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 25mm and an inside diameter of 5.5mm with an internal flange hole of 9mm. This round hole pot magnet has a thickness of 8mm, a pull force of 14kg and a weight of 23 grams. It is identified by the AMF magnet part number AMFYPB25.
Uses for our rare earth round hole pot magnets:
These Neodymium Pot Magnets have a round hole and are commonly attached using a bolt or integrated into an individual product design. The steel casing that protects the magnet from chipping and cracking also augments the magnetic field of the internal magnet. This also has the added benefit of creating a single-sided magnet that is stronger than a stand-alone magnet which can be highly beneficial in some application where there is a need to minimise any stray magnetic field. This magnet is popular with farmers, miners or anyone working with heavy machinery as its reliable holding force makes it perfect for attaching additional equipment such as electric drive systems, GPS tracking and guidance systems for mining vehicles and underground mining equipment.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
