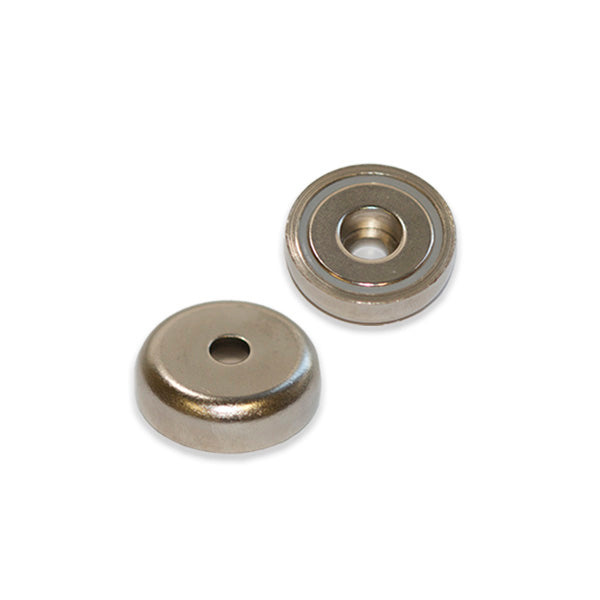

Neodymium Pot Magnet with Round Hole - 20mm x 7mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 20mm and an inside diameter of 4.5mm with an internal flange hole of 8mm. This round hole pot magnet has a thickness of 7mm, a pull force of 6kg and a weight of 12 grams. It is identified by the AMF magnet part number AMFYPB20.

Uses for our rare earth round hole pot magnets:

This Neodymium Pot Magnets has a round hole making them ideal for a range of holding mechanisms, be it slotting onto a rod, secured with a bolt or incorporated into a larger mechanical design. This 20mm diameter magnet is our second smallest pot magnet and is suitable for applications that are temporary or where a relatively low pull force is required. They are also easier to remove by hand than some of our larger, stronger pot magnets. The steel cup in which the magnet is set augments the magnetic field, creating a more powerful pull force than a stand-alone magnet. The protective cover on these pot magnets also means they are a single-sided magnet and the metal casing also helps to preserve the magnet from chipping or cracking, making it robust and reliable when in repeated use.
