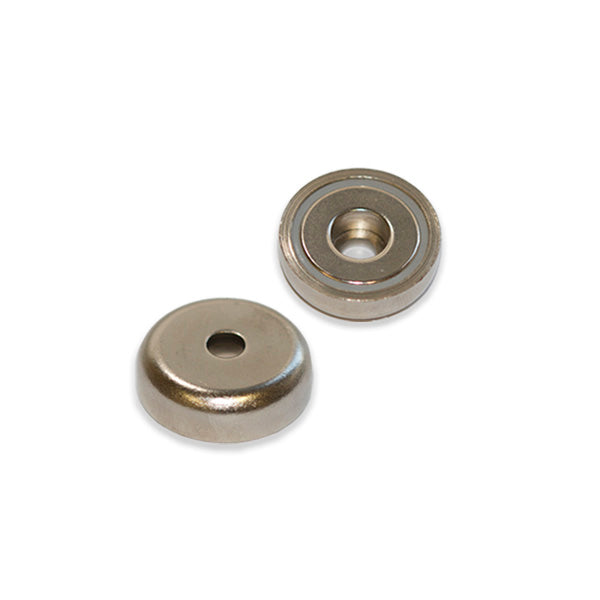

Neodymium Pot Magnet with Round Hole - 16mm x 5mm
Couldn't load pickup availability
Product details
- SKU AMFYPB16
-
Pull Force*
4 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight5.9 gm
- StyleRare earth round hole pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 5mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This strong Neodymium (Rare Earth) Pot Magnet has the surprising pull force of 4kg while only being 16mm in diameter and 5mm in height. The high strength magnet is encased in a mild steel cap for extra protection against chipping and corrosion. The magnet is single-sided due to this protective mild steel casing on one side. It has an inside diameter of 3.5mm and an internal flange hole of 6.5mm.
Uses for our rare earth round hole pot magnets:
Due to the strength of these Rare Earth Round Hole Pot Magnets, they are most commonly used in applications involving holding, lifting and occasionally joinery. The round hole in the center enables the magnet to be installed through the use of a screw or something similar. The high strength and internal void makes this Rare Earth Round Hole Pot Magnet one of the most versatile items in our stock!
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
