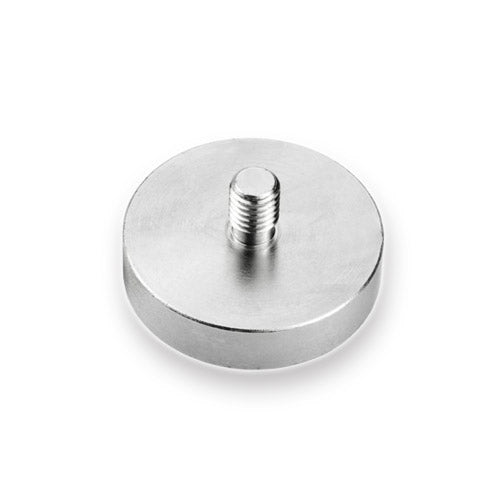

Male Thread Neodymium Pot Magnet - 42mm (D) x 20mm (TH) | M8 Thread
Couldn't load pickup availability
Product details
- SKU AMFYPC42/8
-
Pull Force*
68 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight93.5 gm
- StyleRare Earth male thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 9mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Male Thread Neodymium Holding Magnet Description:
AMF Magnetics offers a variety of Holding Pot Magnets in diverse sizes and shapes, each with a unique level of strength. The featured Neodymium Pot Magnet boasts a pull strength of 68 kilograms and a male M8 thread that easily screws into a female thread.
This high-strength Male Thread Neodymium Pot Magnet boasts a remarkable 68-kilogram pull force despite its small 42mm diameter and 9mm base height. Its 20mm total height includes an 8mm thread and a 1.25mm thread pitch. Its strong neodymium magnet is safeguarded by mild steel for corrosion and chip resistance.
This product is identified by AMF Magnetics part number AMFYPC42/8.
Uses for our Rare Earth Pot Magnets with Male Thread:
This male thread neodymium pot magnet has a diameter of 42mm and a thickness of 20mm, with a M8 (8mm thread) for easy installation. It is specifically designed for providing a strong holding force through the thread and the magnet's powerful strength. Its versatility and convenience in industrial applications make it a useful product. To create a secure hold, simply use a washer and a nut with this threaded rare earth holding pot magnet and screw it into a female thread for a firm grip.
| Product Code | DØ (mm) | M (mm) | H (Total Height) (mm) | h (Base Height) (mm) | Thread Pitch (mm) | Holding force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 41 | 57 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 68 | 84 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 164 | 550 |
