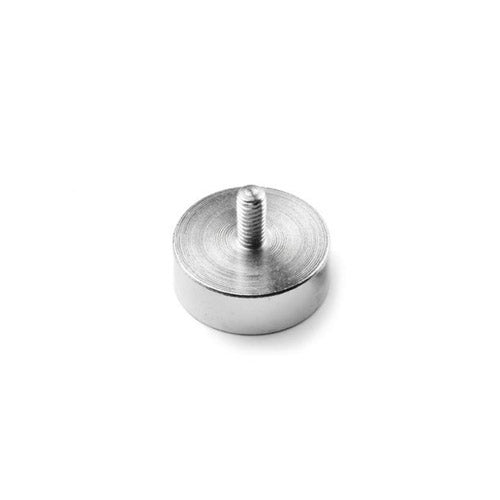

Male Thread Neodymium Pot Magnet - Diameter 20mm x 16mm
Couldn't load pickup availability
Product details
- SKU AMFYPC20
-
Pull Force*
9 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight16.6 gm
- StyleRare Earth male thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised through the 7mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth male threaded pot magnet has a diameter of 20mm, a total height of 16mm and a magnet housing thickness of 7mm. It has a M4 thread with an external boss of 8mm. This male threaded magnet has a pull force of 9kg and a weight of 16 grams. It is identified by the AMF Magnetics part number AMFYPC20.
Uses for our Rare Earth Male Thread Pot Magnets:
This 20mm Neodymium Pot Magnet is one of our most popular dimensions in the Male Threaded range. A strong Neodymium magnet is enclosed in a mild steel cap to protect it from damage whilst in use. The steel cap also serves to enhance the magnetic holding power of the working face whilst diminishing the stray magnetic field produced from the reverse side. There is a protruding male threaded boss permanently attached to the steel cap and this allows for the magnet to be easily secured into position using a washer and a nut or threaded into a corresponding female threaded receptacle. These magnets are popular with a wide range of users as their size and strength make them highly versatile.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Holding force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 16 | 7 | 0.7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 41 | 57 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 68 | 84 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 164 | 550 |
