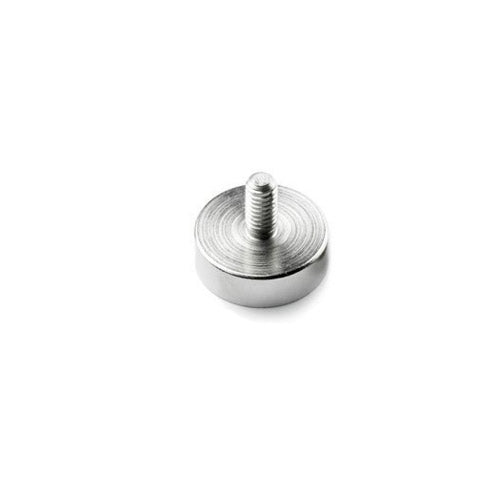

Male Thread Neodymium Pot Magnet - Diameter 16mm x 13mm
Couldn't load pickup availability
Product details
- SKU AMFYPC16
-
Pull Force*
5.5 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight7.9 gm
- StyleRare Earth male thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 5mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth male threaded pot magnet has a diameter of 16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a M4 thread with an external boss of 8mm. This male threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF Magnetics part number AMFYPC16.
Uses for our Rare Earth male thread pot magnets:
This Male Threaded Rare Earth Pot Magnet is designed for attachment using a washer and nut. A mild steel cap covers the powerful Neodymium magnet, protecting it against damage such as chipping and cracking. The steel cup also alters the magnetic field of the magnet, projecting both North and South poles through the active face of the magnet and thereby enhancing the magnetic holding power. The male threaded boss allows for easy attachment to non-ferrous materials such as timber or plastic, it also enables the magnet to be easily incorporated into larger mechanical devices or machinery. This 16mm diameter magnet is particulars popular with Electricians and Electrical Engineers.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Holding force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 41 | 57 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 68 | 84 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 164 | 550 |
