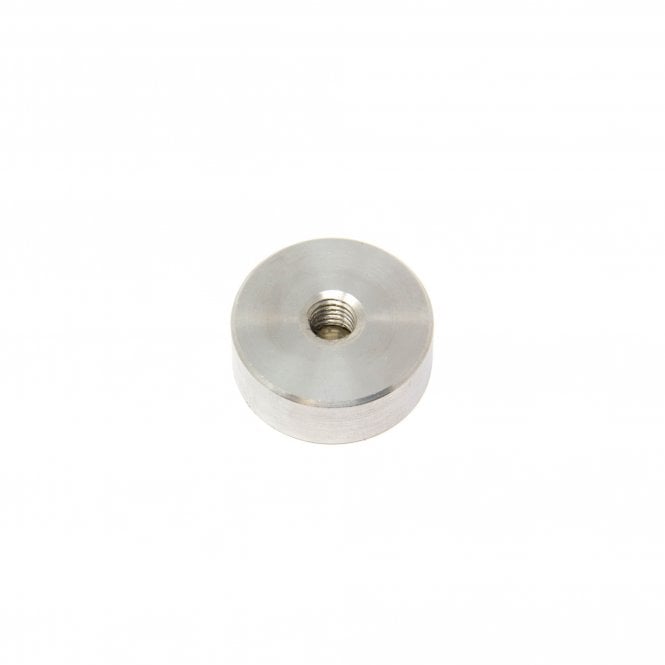

Neodymium Pot Magnet – 35mm Diameter x 12mm | M6 Internal Thread x 8.8mm

The Neodymium Pot Magnet – 35mm Diameter x 12mm | M6 Internal Thread x 8.8mm is a compact, powerful rare earth female threaded pot magnet designed for secure magnetic holding, fixing and equipment mounting. Measuring 35mm in diameter x 12mm high, this magnetic assembly features an M6 internal thread with an 8.8mm thread depth, providing a convenient connection point for compatible threaded components.

Manufactured using high-performance Neodymium Iron Boron (NdFeB) magnetic material, the magnet is contained within a steel pot housing. This housing helps protect the brittle neodymium material while directing and concentrating magnetic flux towards the active working face for effective attraction to compatible ferromagnetic steel.

The combination of a 35mm magnetic base and M6 female thread makes this neodymium pot magnet suitable for machinery, fixtures, signage, sensors, brackets, automation equipment and custom magnetic mounting systems where a strong but removable connection to steel is required.

Key Features

• Powerful neodymium rare earth pot magnet
• 35mm diameter
• 12mm overall height
• M6 internal / female thread
• 8.8mm internal thread depth
• Neodymium Iron Boron (NdFeB) magnetic material
• Steel pot housing
• Concentrated magnetic attraction at the working face
• Designed for compatible M6 threaded components
• Removable and repositionable magnetic attachment
• Permanent magnetic operation
• No electrical power required
• Suitable for industrial, engineering and commercial applications

Common Applications

• Industrial machinery
• Equipment mounting
• Manufacturing fixtures
• Jigs and positioning systems
• Signage and displays
• Sensor mounting
• Removable panels
• Automation equipment
• Brackets and supports
• Workshop fixtures
• OEM equipment
• Custom magnetic assemblies

M6 Internal Thread with 8.8mm Thread Depth

The integrated M6 internal thread provides a practical method for attaching a compatible male-threaded component to the magnetic base.

With an 8.8mm thread depth, the female threaded connection can be incorporated into a variety of mechanical mounting arrangements using suitable M6 hardware.

Compatible components may include:

• Threaded studs
• Bolts
• Hooks
• Eyebolts
• Handles
• Brackets
• Custom fixtures

Always confirm the thread dimensions and available engagement before installation. Avoid inserting a threaded component beyond the available thread depth or applying excessive tightening force.

How Does a Neodymium Pot Magnet Work?

A neodymium pot magnet combines a powerful rare earth magnet with a surrounding steel cup or housing.

The steel pot helps redirect and concentrate the magnetic field towards the exposed working face. This creates an effective magnetic mounting surface while providing additional mechanical protection around the neodymium magnet.

Pot magnets are particularly effective when their complete working face is positioned directly against clean, flat and sufficiently thick ferromagnetic steel.

Why Choose an Internal Thread Pot Magnet?

An internally threaded or female thread pot magnet allows compatible hardware to be connected directly to the magnetic assembly.

This provides considerable flexibility when creating removable mounting systems. Depending on the application, the magnet can be incorporated into a custom assembly while the magnetic face provides attachment to steel without permanently drilling or welding the supporting surface.

This makes female threaded pot magnets useful for:

• Removable fixtures
• Adjustable equipment
• Temporary mounting
• Custom brackets
• Machine accessories
• Signage systems
• Positioning equipment

Steel Pot Housing

The steel housing is an important part of the magnetic assembly. In addition to providing physical protection around the magnet, it helps channel magnetic flux towards the active face.

This pot-style configuration is designed to maximise practical magnetic attraction at the working surface when used against suitable steel.

The magnetic field is permanent, so the assembly does not require batteries, wiring or an external power supply.

Technical Specifications

• Product Type: Internally Threaded Neodymium Pot Magnet
• Alternative Names: Female Thread Pot Magnet, Threaded Rare Earth Pot Magnet, Neodymium Mounting Magnet
• Magnetic Material: Neodymium Iron Boron (NdFeB)
• Magnet Type: Rare Earth Permanent Magnet
• Shape: Round
• Diameter: 35mm
• Overall Height: 12mm
• Thread: M6 Internal / Female
• Thread Depth: 8.8mm
• Housing: Steel Pot
• Power Requirement: None
• Primary Function: Magnetic holding, mounting and fixing
• Target Surface: Compatible ferromagnetic iron and steel

Industrial and Engineering Applications

The 35mm diameter magnetic base and M6 internal thread make this pot magnet suitable for integration into a wide range of purpose-built equipment.

Potential users include:

• Equipment manufacturers
• Mechanical engineers
• Fabricators
• Maintenance teams
• Machinery builders
• Sign manufacturers
• Automation specialists
• OEM designers

Its threaded design is particularly useful where a mechanical component needs to be attached to a magnetic base and subsequently positioned, removed or relocated on a steel structure.

Getting the Best Magnetic Holding Performance

Magnetic holding performance depends heavily on the target material and installation conditions.

For best results:

• Use clean, flat ferromagnetic steel
• Maximise contact across the working face
• Use sufficiently thick steel where possible
• Minimise paint, coatings and other air gaps
• Keep contact surfaces free from rust and debris
• Avoid highly curved or uneven surfaces
• Consider the direction of the applied load

Magnetic attraction is generally strongest under direct-pull conditions. Vertical, sideways, shear and peeling loads can result in substantially lower practical holding performance.

Please Note

No specific pull-force rating has been provided for this product, so a maximum holding capacity should not be inferred from its 35mm diameter or neodymium construction.

The M6 internal thread has an 8.8mm thread depth. Ensure any threaded component is dimensionally compatible and does not bottom out or place excessive force on the magnetic assembly.

Neodymium magnets are powerful but hard and brittle. Avoid dropping, striking, drilling, cutting or machining the magnetic assembly.

This product should not be used for lifting people, overhead suspension or safety-critical load holding unless the complete system has been appropriately engineered, tested and rated.

Keep strong magnets away from children, pacemakers, medical implants, magnetic storage media and sensitive electronic equipment.
