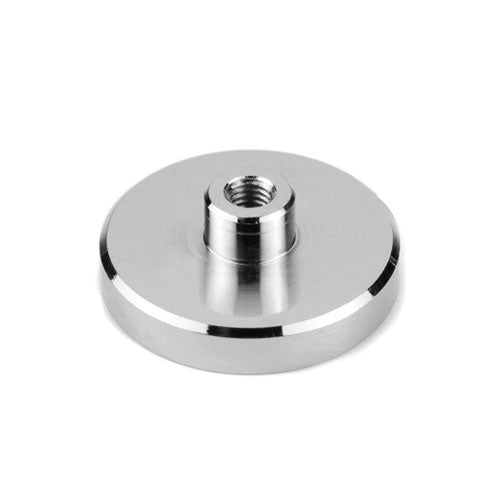

Female Thread Neodymium Pot Magnet - Diameter 48mm x 24mm
Couldn't load pickup availability
Product details
- SKU AMFYPD48
-
Pull Force*
81kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight158.6 gm
- StyleRare Earth female thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 11.5mm
Neodymium Holding Pot Magnet Product Description:
AMF Pot Magnets use high-quality Neodymium Permanent Magnets. These holding magnets are encased in mild steel for extended use and strength, This Rare Earth Female Threaded Pot Magnet has a diameter of 48mm, a total height of 24mm and a magnet housing thickness of 11.5mm. It has an 8mm female thread. This Neodymium Magnetic Pot has a pull force of 81kg and a weight of 132 grams.
Uses for our Neodymium Rare Earth Pot Magnet with Female Thread:
These Neodymium Pot Magnets have a Female Thread that allows them to be attached to any type of surface with a bolt. It can also accommodate an eyelet or hook attachment. The steel cover on this magnet is designed to protect the magnet from damage and corrosion. It also redirects the magnetic field so it flows towards the base, creating improved holding force and holding ability.
This threaded magnet can be extremely versatile for attaching various materials securely and quickly to steel surfaces. Add a hook and eyelet attachment for hanging or suspending a range of items from ferrous metal surfaces. Alternatively, a threaded rod or bar can be inserted to attach or display signage and then attached to ferrous metallic surfaces. Magnetic attachment enables signage to be easily removed and replaced as required.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
