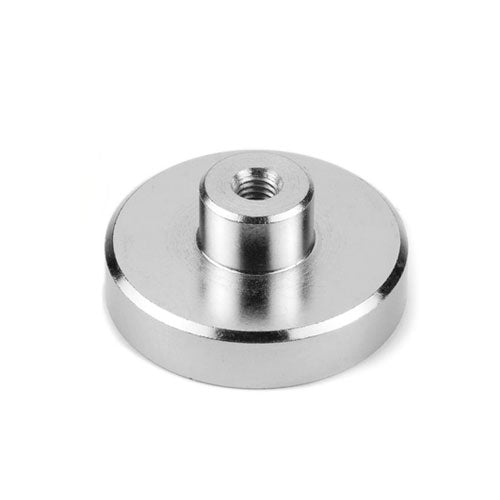

Female Thread Neodymium Pot Magnet - Diameter 42mm x 20mm
Couldn't load pickup availability
Product details
- SKU AMFYPD42
-
Pull Force*
68kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight87.6 gm
- StyleRare Earth female thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 9mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Neodymium Pot Magnet with Female Thread Description:
This Rare Earth Female Threaded Magnet has a diameter of 42mm, a total height of 20mm, and a magnet housing thickness of 9mm. It has a 6mm female thread. This strong Neodymium Magnet has a pull force of 68 kilograms and a weight of 87 grams. It is identified by the AMF Magnetics part number AMFYPD42.
Uses for our Neodymium Rare Earth Female Thread Holding Magnets:
Our Rare Earth Holding Pot Magnets (Female Thread) are Neodymium magnets in a mild steel cap that protects the magnet from chipping. Due to the protective cover on these pot magnets, they are effectively a single-sided magnet. This also increases the magnetic field creating a powerful pull strength.
AMF Magnetics range of Female Thread Rare Earth Pot Magnets can accommodate a bolt, threaded bar or an interchangeable eyelet or hook accessory. This permanent Magnetic is great for suspending lighting or electrical cabling in construction areas. Most commonly used by tradespeople or people with temporary stalls and exhibits in markets.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
