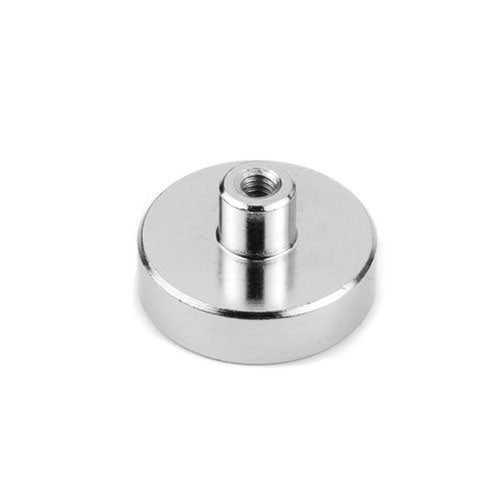

Female Thread Neodymium Pot Magnet - Diameter 25mm x 17mm
Couldn't load pickup availability
Product details
- SKU AMFYPD25
-
Pull Force*
22kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight30.5 gm
- StyleRare Earth female thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 8mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare-earth female threaded pot magnet has a diameter of 25mm, a total height of 17mm and a magnet housing thickness of 8mm. It has a 5mm female thread with an external boss of 10mm. This female threaded magnet has a pull force of 22kg and a weight of 32 grams. It is identified by the AMF magnet part number AMFYPD25.
Uses for our rare earth female thread pot magnets:
Pot magnets use strong Neodymium magnets that have a sturdy steel cap on one side that protects the magnet, and at the same time, redirects more magnetic field to the holding surface on the uncapped base. This makes them ideal for holding applications. These Neodymium Pot magnets have a Female Thread that allows them to be attached to any surface with a bolt. It also allows attachment of useful accessories like hooks and eyelets that make handy metal retrieval tools. Pot magnets connect ferrous materials to non-ferrous material using a magnetic bond. They allow any material to be suspended from metal in an easy to release manner that can be easily re-positioned or relocated when need be.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 |
5 | 17 | 8 |
22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
