Female Thread Neodymium Pot Magnet - Diameter 16mm x 13mm
Couldn't load pickup availability
Product details
- SKU AMFYPD16
-
Pull Force*
5.5kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight7.9 gm
- StyleRare Earth female thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 5mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:

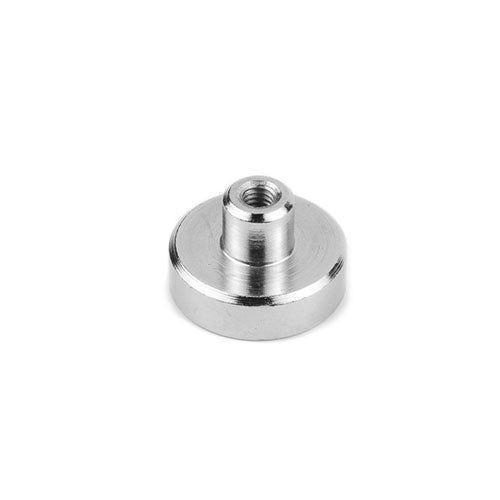

This rare earth female threaded pot magnet has a diameter of 16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a 4mm female thread. This female threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF magnet part number AMFYPD16.
Uses for our rare earth female thread pot magnets:
These Female Threaded Holding Pot Magnets are commonly used with standard hardware such as bolts, hooks and eyelets with the corresponding thread. Magnetic hooks or eyelets are a non-destructive way of attaching or suspending objects and they can be removed and repositioned as needed without the need for tools or damage the underlying surface. These Neodymium pot magnets are a mainstay of the security industry, used as a component in most commercial and residential security systems. Similarly, they are commonly used in the professional installation of fire and HVAC systems. The reliability or a permanent magnet coupled with their robust construction make them suitable for these long-lasting systems.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
