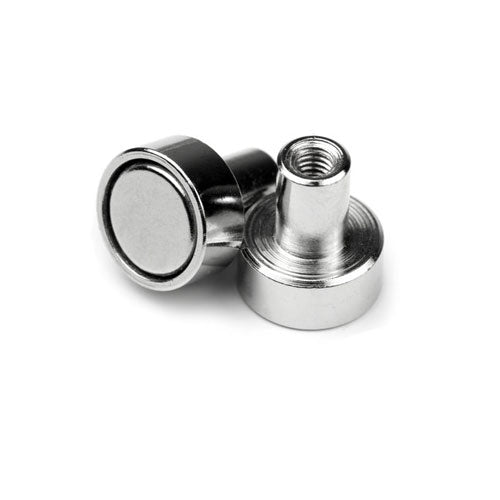

Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm
Couldn't load pickup availability
Product details
- SKU AMFYPD10
-
Pull Force*
2.2 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight4.07 gm
- StyleRare Earth female thread pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 5mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:
This rare earth female threaded pot magnet has a diameter of 10mm, a total height of 12mm and a magnet housing thickness of 5mm. It has a 3mm female thread. This female threaded pot magnet has a pull force of 2.2kg and a weight of 4 grams. It is identified by the AMF magnet part number AMFYPD10.
Uses for our rare earth female thread pot magnets:
These Female Threaded Holding Pot Magnets consist of a Neodymium disc magnet housed inside a mild steel cup with a protruding female threaded stem. The steel cap protects the brittle Neodymium magnet within from unwanted damage such as chipping and cracking. This protective case also magnifies the holding power of the magnet by deflecting the magnetic field produced through the reverse side of the magnet so both poles are presented through the active face of the magnet. These pots are commonly used in conjunction with standard hardware such as bolts, hooks and eyelets as a non-destructive solution for attaching and suspending objects from ferrous surfaces.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
