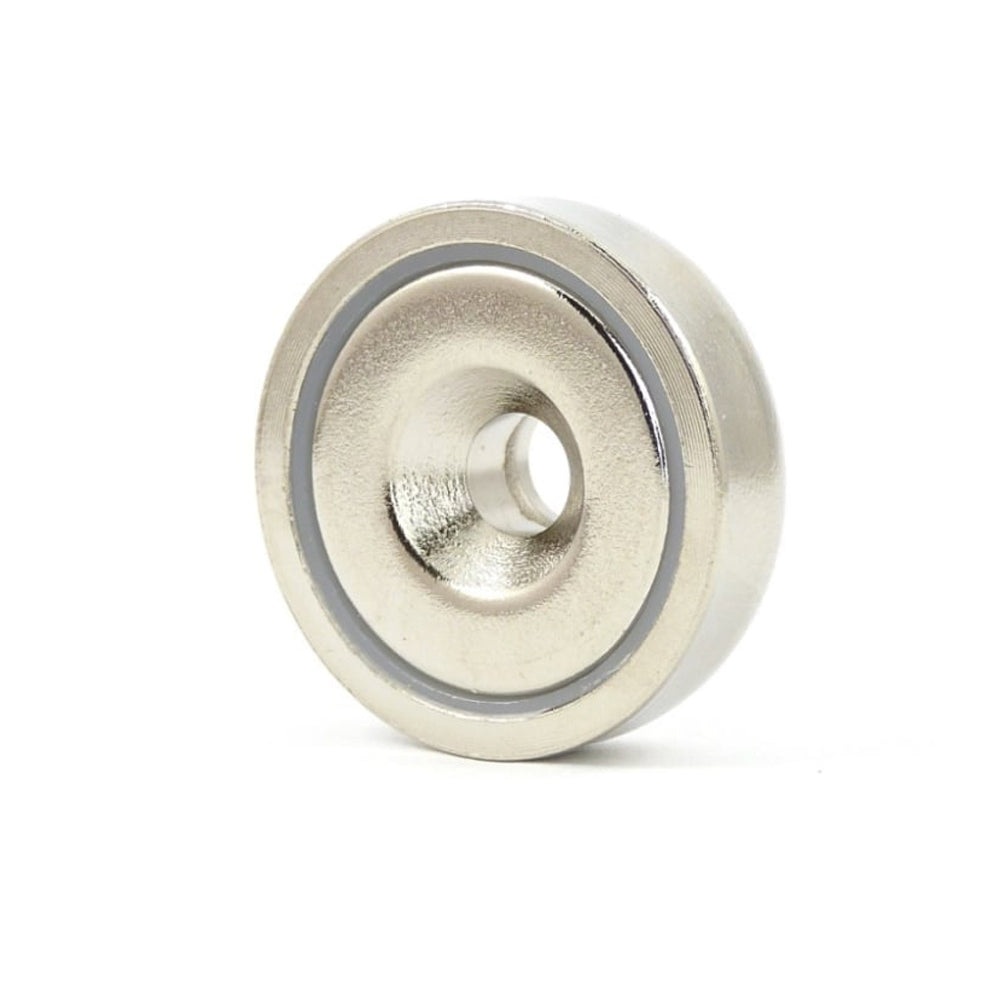

Neodymium Countersunk Pot Magnet - 48mm x 11.5mm
Couldn't load pickup availability
Product details
- SKU AMFYPA48
-
Pull Force*
68 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight148 gm
- StyleRare earth countersunk pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 11.5mm
Magnetic Product Description:
This rare earth pot magnet has a diameter of 48mm, a countersunk hole diameter of 8.5mm and a thickness of 11.5mm. It has a pull force of 68kg and a weight of 120 grams. It is identified by the AMF magnet part number AMFYPA48.
Uses for our rare earth countersunk pot magnets:
Designers of modern homes specify magnets for secret fixing of high end cabinetry fitouts, galley style hanging kitchens, staircase and balustrading and soft close functions. These countersunk 48mmx11.5mm countersunk pot magnets provide the option of attaching a hook or eyelet to improve efficacy.
Magnets are a different kind of fastening system, but surprisingly cost effective. Stainless steel, stone, concrete and solid timber are the materials architects choose for their clients, often with magnets of all kinds, for fixing, holding, releasing, re-engaging as the specified connective tissue.
People who build architect designed homes are different but they still love a bargain. That is why they employ architects and tradespeople who use these 48mmx11.5mm countersunk pot holder magnets when building their special abodes.
To deliver the difference the different demand, skilled designers reach for the magic of magnets.
Due to the versatility and high quality of our rare earth pot countersunk magnets they can be used for different applications and also for household or industrial uses. This 48mm pot magnet can be used for construction, building or design purposes.
| SKU | DØ | D1Ø | D2Ø | H | Pull Force (kg) | Weight (g) |
| AMFYPA10 | 10 | 3.7 | 7.4 | 4.5 | 1.4 | 2.2 |
| AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
| AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| AMFYPA25SLIM | 25 | 5.5 | 10.4 | 6.65 | 12 | 20 |
| AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| AMFYPA32SLIM | 32 | 5.5 | 10.4 | 6.65 | 22 | 34 |
| AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
| AMFYPA36SLIM | 36 | 6.5 | 12 | 6.7 | 25 | 44 |
| AMFYPA42 | 42 | 6.5 | 12 | 7.9 | 58 | 65 |
| AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| AMFYPA48SLIM | 48 | 8.5 | 16 | 9.35 | 56 | 100 |
| AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
