Neodymium Countersunk Pot Magnet - 42mm x 7.9mm
Couldn't load pickup availability
Product details
- SKU AMFYPA42
-
Pull Force*
58 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight65.37 gm
- StyleRare Earth Countersunk Pot Magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially Magnetised Through 7.9mm Thickness
Magnetic Product Description:

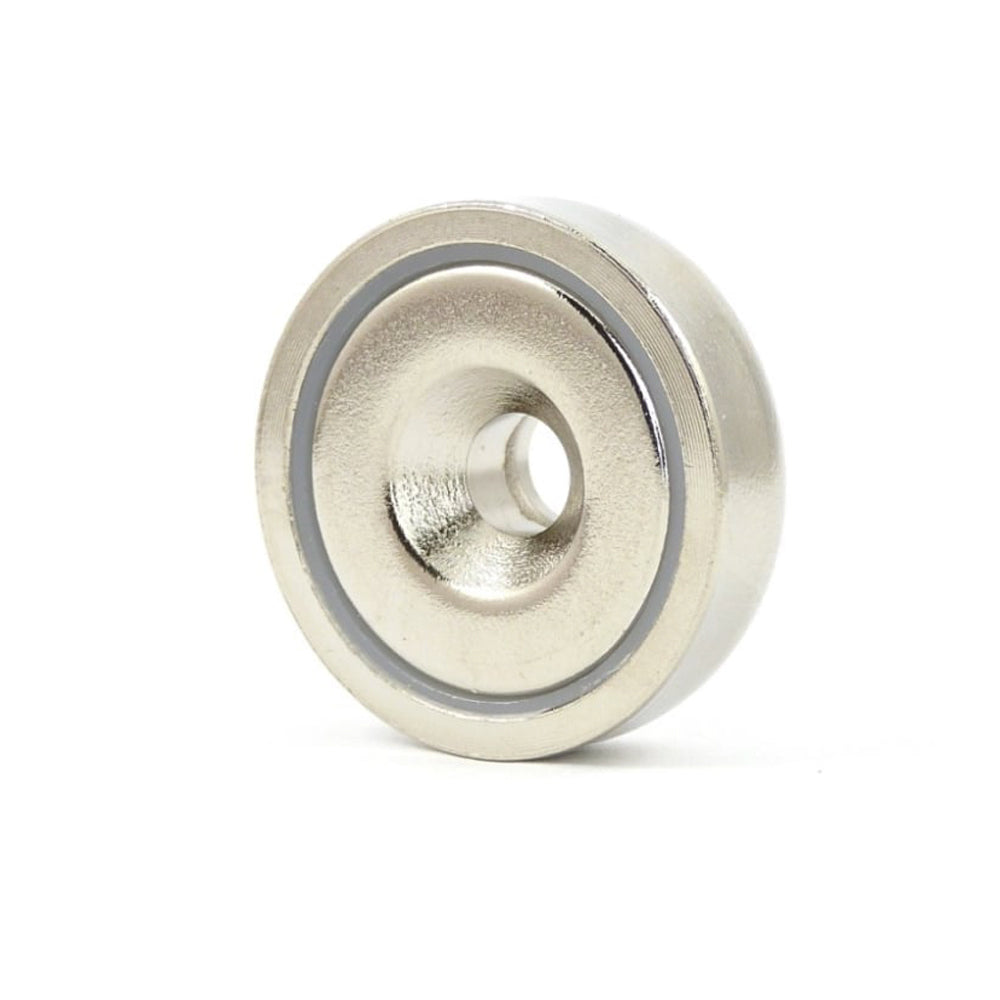

This Rare Earth pot magnet has a diameter of 42mm, a countersunk hole diameter of 6.5mm and a thickness of 7.9mm. It has a pull force of 58 kilograms and a weight of 65 grams. It is identified by the AMF Magnetics part number AMFYPA42.
Uses for our Rare Earth Countersunk Pot Magnets:
People who build architect designed homes are different but they still love a bargain. That is why they employ architects and tradespeople who use these 42mm x 7.9mm countersunk pot holder magnets when building their special abodes.
Magnets are a different kind of fastening system, but surprisingly cost effective. Stainless steel, stone, concrete and solid timber are the materials architects choose for their clients, often with magnets of all kinds, for fixing, holding, releasing, re-engaging as the specified connective tissue.
Designers of modern homes specify magnets for secret fixing of high end cabinetry fit-outs, galley style hanging kitchens, staircase and balustrading and soft close functions. These countersunk 42mm x 7.9mm provide the option of attaching a hook or eyelet to improve efficacy. To deliver the difference the different demand, skilled designers reach for the magic of magnets.
Our 42mm rare earth pot countersunk magnet is very popular throughout many industries. It has a high strength magnet in a mild-steel nickel coated pot.
| SKU | DØ | D1Ø | D2Ø | H | Pull Force (kg) | Weight (g) |
| AMFYPA10 | 10 | 3.7 | 7.4 | 4.5 | 1.4 | 2.2 |
| AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
| AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| AMFYPA25SLIM | 25 | 5.5 | 10.4 | 6.65 | 12 | 20 |
| AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| AMFYPA32SLIM | 32 | 5.5 | 10.4 | 6.65 | 22 | 34 |
| AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
| AMFYPA36SLIM | 36 | 6.5 | 12 | 6.7 | 25 | 44 |
| AMFYPA42 | 42 | 6.5 | 12 | 7.9 | 58 | 65 |
| AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| AMFYPA48SLIM | 48 | 8.5 | 16 | 9.35 | 56 | 100 |
| AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
