Neodymium Countersunk Pot Magnet - 36mm x 9mm
Couldn't load pickup availability
Product details
- SKU AMFYPA36
-
Pull Force*
29 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight48.2 gm
- StyleRare earth countersunk pot magnet
- CoatingNickel (NiCuNi)
- Direction of MagnetisationAxially magnetised thru the 9mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:

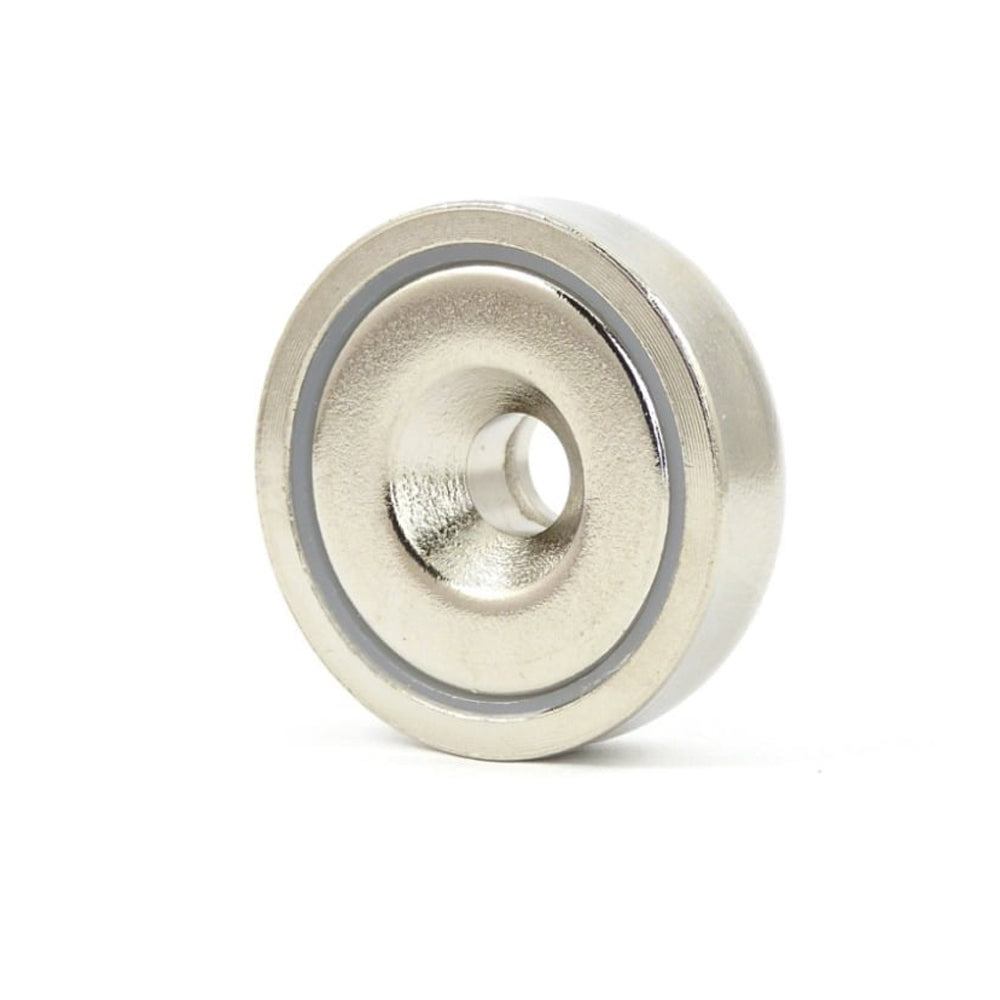

This rare earth pot magnet has a diameter of 36mm, a countersunk hole diameter of 6.5mm and a thickness of 9mm. It has a pull force of 29kg and a weight of 52 grams. It is identified by the AMF magnet part number AMFYPA36.
Uses for our rare earth countersunk pot magnets:
This Countersunk Neodymium Pot magnet is employed by builders and cabinetmakers in a host of different ways during the construction of high-end commercial buildings and homes. Incorporated into the design to create secret fixings, drawer closures, hanging systems and seamless cabinetry, these Rare Earth pot magnets are indispensable for anyone working in the building industry. These Neodymium Pot Magnets have a countersunk hole making them ideal for screwing onto a surface for a permanent holding point. Alternatively, attach it to the end of your tool or jig for a customised magnetic solution. This 36mm Pot Magnets has a strong holding capacity and is suitable for attaching to vertical walls and for hanging items from ceilings.
| SKU | DØ | D1Ø | D2Ø | H | Pull Force (kg) | Weight (g) |
| AMFYPA10 | 10 | 3.7 | 7.4 | 4.5 | 1.4 | 2.2 |
| AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
| AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| AMFYPA25SLIM | 25 | 5.5 | 10.4 | 6.65 | 12 | 20 |
| AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| AMFYPA32SLIM | 32 | 5.5 | 10.4 | 6.65 | 22 | 34 |
| AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
| AMFYPA36SLIM | 36 | 6.5 | 12 | 6.7 | 25 | 44 |
| AMFYPA42 | 42 | 6.5 | 12 | 7.9 | 58 | 65 |
| AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| AMFYPA48SLIM | 48 | 8.5 | 16 | 9.35 | 56 | 100 |
| AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
