Meant to stick together...

Neodymium Countersunk Pot Magnet - 25mm x 8mm

In stock
SKU: AMFYPA25
Regular price $7.53 for 1 to 9 items
$5.97 buy 10 to 99 items and save 20% $5.20 buy 100+ items and save 30%

Product details

  • SKU AMFYPA25
  • Pull Force*

    The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More

    14 kg
  • Weight23.7 gm
  • StyleRare earth countersunk pot magnet
  • CoatingNickel (NiCuNi)
  • Direction of MagnetisationAxially magnetised thru the 8mm
  • *Measured against up to 10mm mild steel.

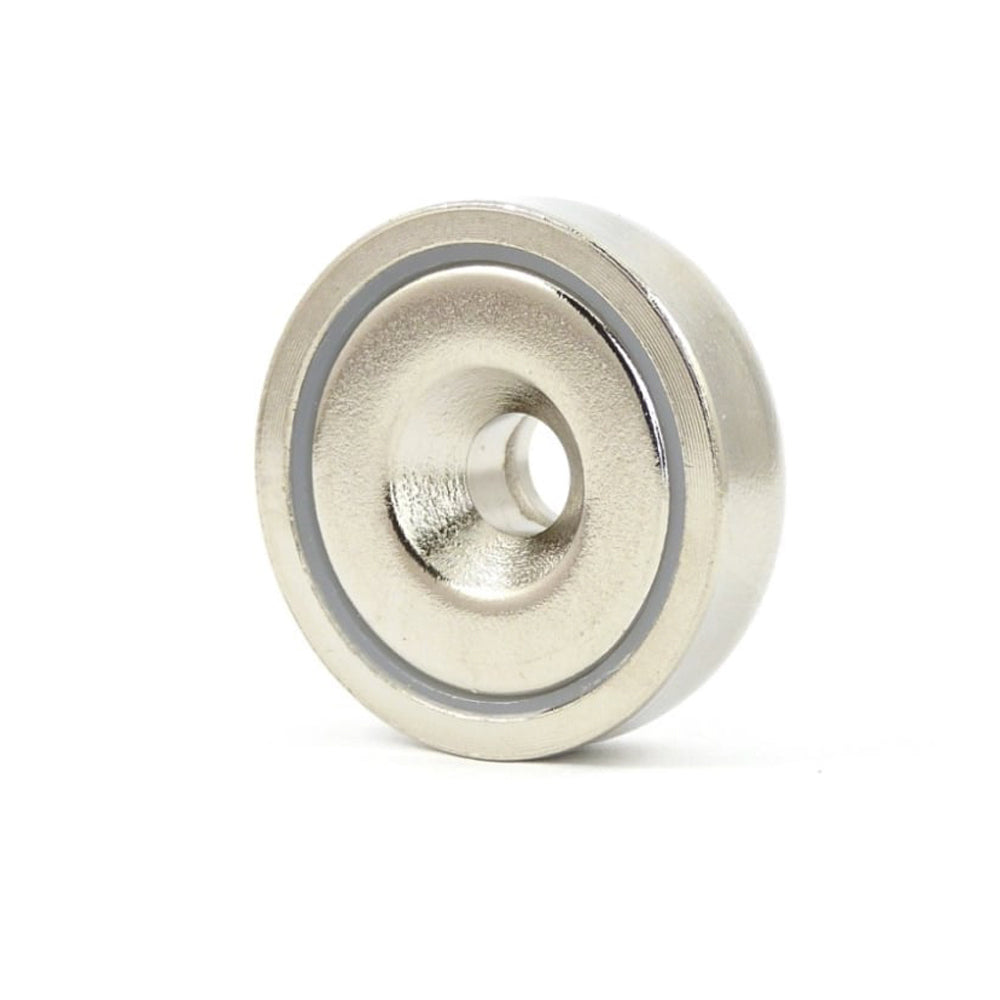

Neodymium Pot Magnet With Countersunk Hole Product Description:

This Countersunk Pot Magnet is made from a powerful Rare Earth magnet encased in a mild steel, nickel coated holding pot. The metal casing provides for superior durability, allowing the brittle magnet within to withstand impact and corrosion to a greater extent. This product has a diameter of 25mm, a countersunk hole diameter of 5.5mm and a thickness of 8mm. This super-strong holding magnet has a pull force of 14kg and a weight of 23 grams.

Uses for our Rare Earth Countersunk Pot Magnets:

This Countersunk Neodymium Magnet is widely popular due to its versatility and multitude of applications. These handy 25mm pot magnets are suitable for builders and tradespeople or DIY home improvement. These industries prefer Countersunk magnets as they are high quality, high strength and multi-purpose.

The countersunk hole in the centre is specifically designed for screws. This means the magnet can easily be secured in place with a simple screw. This magnet can be secured to any magnetic or non magnetic material. From wood to plastic, the options are endless! Create magnetic door latches, tool holders or use this magnet as a part of a complex mechanical arrangement.

SKU D1Ø D2Ø H Pull Force (kg) Weight (g)
AMFYPA10 10 3.7 7.4 4.5 1.4 2.2
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA25SLIM 25 5.5 10.4 6.65 12 20
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA32SLIM 32 5.5 10.4 6.65 22 34
AMFYPA36 36 6.5 12 9 29 52
AMFYPA36SLIM 36 6.5 12 6.7 25 44
AMFYPA42 42 6.5 12 7.9 58 65
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA48SLIM 48 8.5 16 9.35 56 100
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488
