Meant to stick together...

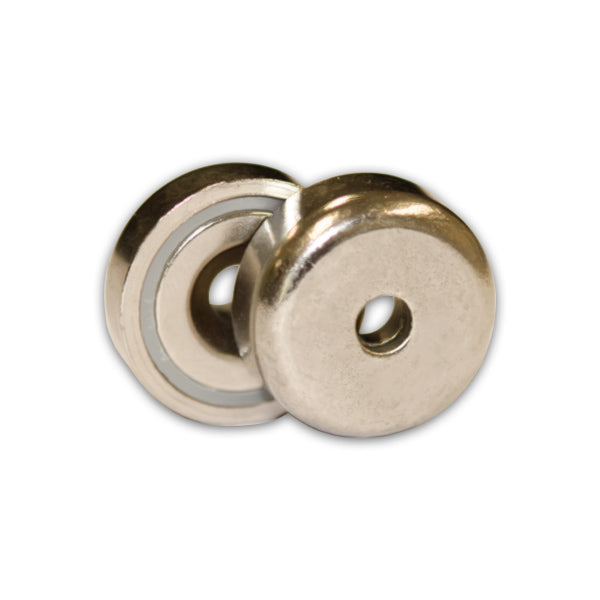

Neodymium Countersunk Pot Magnets - 20mm x 7mm | NORTH SOUTH PAIR

In stock
SKU: AMFYPA20N/S
Regular price $10.57 for 1 to 9 items
$9.43 buy 10 to 99 items and save 10% $7.59 buy 100+ items and save 28%

Product details

  • SKU AMFYPA20N/S
  • Pull Force*

    The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More

    6 kg
  • Weight13 gm
  • StyleRare earth countersunk pot magnet
  • CoatingNickel (NiCuNi)
  • Direction of MagnetisationAxially magnetised thru the 7mm
  • *Measured against up to 10mm mild steel.

Magnetic Product Description:

This north and south pair of rare earth countersunk pot magnet have a diameter of 20mm, a countersunk hole diameter of 4.5mm and a thickness of 7mm. It has a pull force of 6 kilograms and a weight of 13 grams. It is identified by the AMF magnet part number AMFYPA20NS.

Uses for our Rare Earth Countersunk Pot Magnets:

Capped countersunk Holding magnets have a greater holding capacity than standard uncapped disc magnets and are extremely useful tools for attaching various items to steel surfaces. These countersunk Holding magnets have an additional feature of countersunk North and South matched poles that attract to each other instead of repelling. When screwed onto opposing surfaces, a magnetic bond is created which is reciprocal and does not require the presence of ferrous material to operate. Unlike traditional, less practical fasteners, a magnetic bond can be broken and then reinstated as often as required, in a time-saving and efficient manner that is instantaneous and does not require tools or DIY skills. Paired magnets, with complementary poles that attract to each other, allow any two types of surfaces to attach magnetically. Unmatched Holding-type magnets will attach to each other to some extent, but not with the precision and accuracy exhibited by these paired magnets with matching North to South poles.

SKU D1Ø D2Ø H Pull Force (kg) Weight (g)
AMFYPA10 10 3.7 7.4 4.5 1.4 2.2
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA25SLIM 25 5.5 10.4 6.65 12 20
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA32SLIM 32 5.5 10.4 6.65 22 34
AMFYPA36 36 6.5 12 9 29 52
AMFYPA36SLIM 36 6.5 12 6.7 25 44
AMFYPA42 42 6.5 12 7.9 58 65
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA48SLIM 48 8.5 16 9.35 56 100
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488
