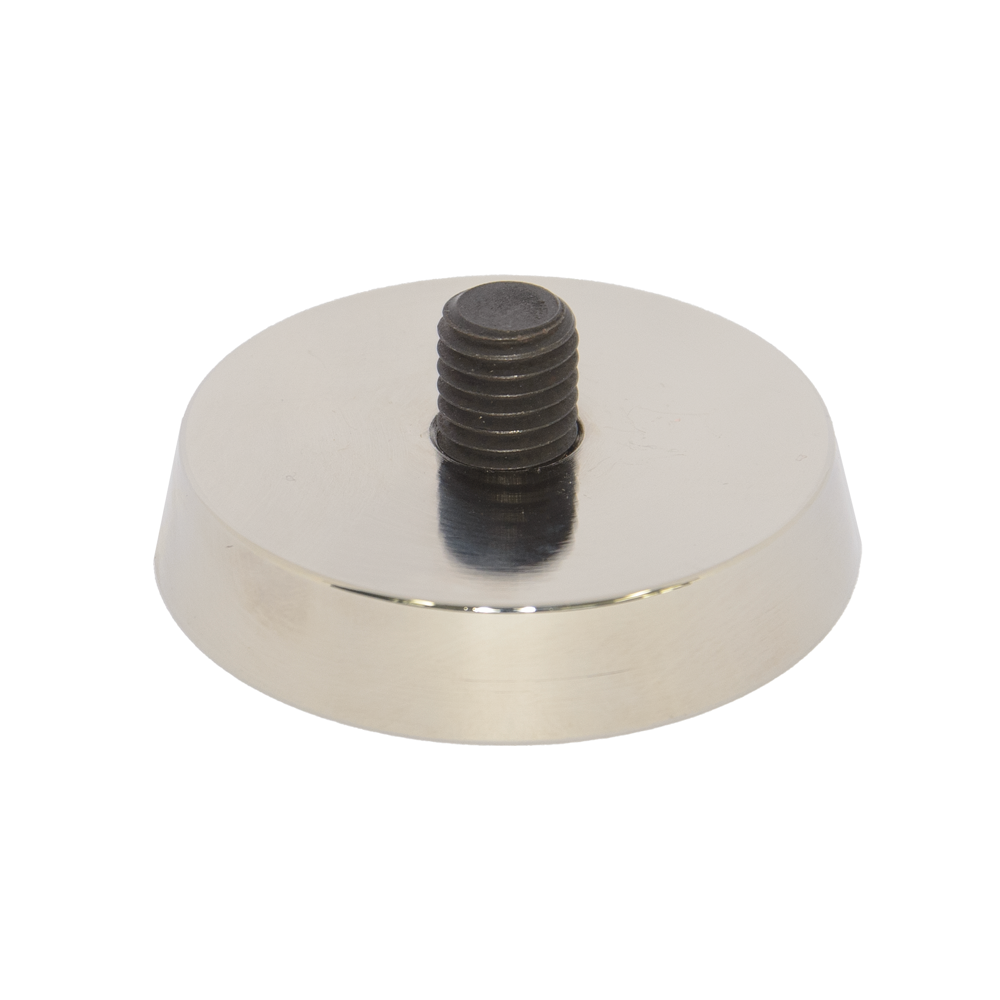

Neodymium Magnetic Fixing Plate – D55mm | M10 Thread x H25mm

The Neodymium Magnetic Fixing Plate – D55mm | M10 Thread x H25mm is a powerful and versatile rare earth magnetic mounting solution designed for securely attaching compatible equipment, fixtures and components to ferromagnetic steel surfaces. Featuring a 55mm diameter magnetic base, an M10 threaded connection and an overall 25mm height, this magnetic fixing plate provides strong magnetic holding performance in a compact, reusable format.

The integrated M10 thread provides a convenient mechanical connection for compatible brackets, fixtures, handles and custom components. Once assembled, the fixing plate can be positioned directly onto a suitable steel surface, creating a removable and repositionable mounting point without drilling or welding into the supporting steel structure.

Using powerful neodymium rare earth magnetic material, this D55mm magnetic fixing plate is ideal for industrial, engineering, manufacturing, workshop and custom mounting applications where a strong temporary or adjustable attachment point is required.

Key Features

• Powerful neodymium magnetic fixing plate
• 55mm diameter (D55mm)
• 25mm overall height (H25mm)
• M10 threaded connection
• High-strength rare earth magnetic system
• Designed for attachment to suitable ferromagnetic steel
• Removable and repositionable mounting solution
• No drilling or welding into the supporting steel surface required
• Suitable for custom fixtures and equipment assemblies
• Ideal for industrial, engineering and workshop applications

Common Applications

• Industrial equipment mounting
• Machinery and fabrication
• Temporary fixtures
• Positioning systems
• Steel frame attachments
• Workshop equipment
• Manufacturing fixtures
• Signage and displays
• Custom brackets and supports
• OEM magnetic assemblies

M10 Thread for Secure Equipment Attachment

The integrated M10 thread provides a practical connection point for compatible threaded components.

Depending on the application, the magnetic fixing plate can be combined with brackets, handles, supports, fixtures, equipment accessories and custom mounting hardware.

This threaded design allows the attached component to be mechanically secured to the magnetic base while retaining the flexibility of magnetic mounting to the supporting steel surface.

Always confirm the M10 thread type, available thread engagement and compatibility with the intended component before installation.

Why Choose a Neodymium Magnetic Fixing Plate?

Neodymium Iron Boron (NdFeB) is one of the strongest commercially available permanent magnetic materials, providing excellent magnetic performance relative to its size.

The 55mm diameter magnetic base provides a substantial contact area for engaging compatible steel surfaces, while the compact 25mm height makes the assembly suitable for installations where space is limited.

Unlike permanent mechanical fasteners, a magnetic fixing plate allows equipment to be installed, removed and repositioned without repeatedly drilling or welding the supporting steel surface.

Technical Specifications

• Product Type: Neodymium Magnetic Fixing Plate
• Magnetic Material: Neodymium Rare Earth / NdFeB
• Magnet Type: Permanent Magnet
• Shape: Round
• Diameter: 55mm
• Height: 25mm
• Thread: M10
• Connection Type: Threaded
• Mounting Method: Magnetic attachment to ferromagnetic steel
• Primary Function: Removable magnetic mounting and fixing
• Typical Applications: Machinery, fixtures, fabrication, equipment and custom mounting systems

Removable and Repositionable Magnetic Mounting

The D55mm M10 magnetic fixing plate provides a convenient alternative to permanent mounting methods in applications where equipment may need to be moved or adjusted.

It can be useful for:

• Temporary equipment installations
• Adjustable fixtures
• Prototype development
• Workshop setups
• Machinery accessories
• Frequently repositioned equipment
• Removable signs and displays
• Custom magnetic mounting systems

When requirements change, the magnetic base can be repositioned without creating additional holes or permanent modifications to the supporting steel structure.

Getting the Best Magnetic Holding Performance

For maximum holding performance, the magnetic fixing plate should make direct, flat contact with clean and sufficiently thick ferromagnetic steel.

Magnetic holding performance can be reduced by:

• Thin steel
• Paint and protective coatings
• Rust, dirt or surface contamination
• Air gaps
• Curved or uneven mounting surfaces
• Sideways or shear loading
• Peeling forces

Where a pull-force rating is specified separately, it is generally measured under controlled direct-pull conditions against clean, thick, flat steel. Real-world holding capacity can be considerably lower depending on the installation.

Industrial and Engineering Applications

The combination of a 55mm neodymium magnetic base, M10 threaded connection and 25mm height makes this fixing plate suitable for manufacturers, engineers, fabricators, maintenance teams and tradespeople requiring a compact but powerful magnetic mounting point.

It can be used on suitable steel machinery, fabrication tables, structural frames, industrial equipment and other ferromagnetic surfaces, provided the complete installation is appropriate for the expected load and operating conditions.

Please Note

This is a powerful neodymium magnetic assembly and should be handled carefully. Keep fingers clear when positioning the fixing plate against steel, as sudden magnetic attraction can create a pinch or crush hazard.

Always ensure the M10 threaded connection is correctly engaged and securely fastened before use.

Actual magnetic holding performance depends on steel thickness and grade, surface condition, contact area, air gaps and direction of applied force. Sideways, shear and peeling loads can significantly reduce effective holding capacity compared with direct pull.

This magnetic fixing plate should not be used as certified lifting equipment, an overhead suspension point or a safety-critical mounting device unless the complete installation has been appropriately engineered and tested for that purpose.

Keep strong neodymium magnets away from children, pacemakers, medical implants, magnetic storage media and sensitive electronic equipment.
