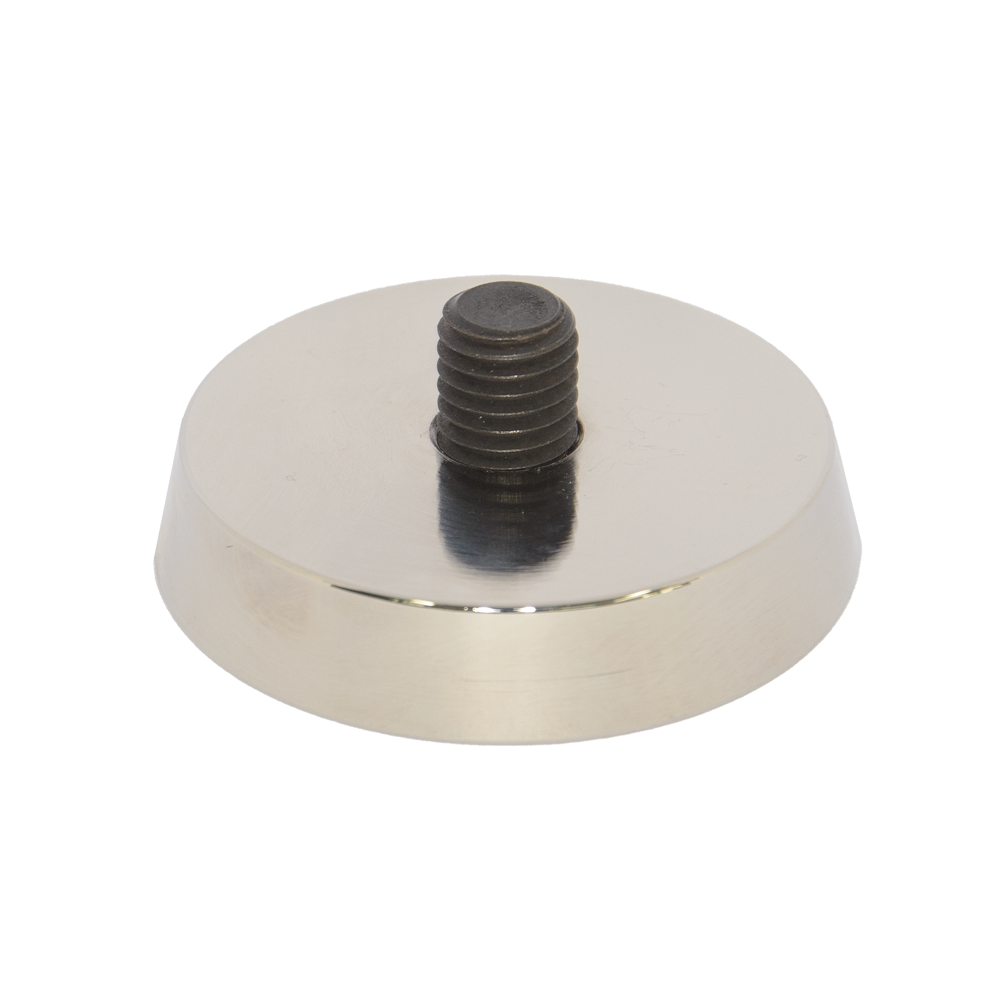

Neodymium Magnetic Fixing Plate – D50mm | M8 Thread x H25mm

The Neodymium Magnetic Fixing Plate – D50mm | M8 Thread x H25mm is a compact, high-strength rare earth magnetic mounting solution designed for securely attaching compatible equipment, fixtures and components to ferromagnetic steel surfaces. Featuring a 50mm diameter magnetic base, an M8 threaded connection and an overall 25mm height, this magnetic fixing plate provides powerful magnetic holding in a practical, reusable format.

The integrated M8 thread provides a convenient mechanical connection for compatible brackets, fixtures, handles and custom components. Once assembled, the fixing plate can be positioned directly onto a suitable steel surface to create a removable and repositionable mounting point without drilling or welding into the supporting steel structure.

Using powerful neodymium rare earth magnetic material, this D50mm fixing plate is suitable for industrial, engineering, fabrication, workshop and custom mounting applications where a strong temporary or adjustable attachment point is required.

Key Features

• Powerful neodymium magnetic fixing plate
• 50mm diameter (D50mm)
• 25mm overall height (H25mm)
• M8 threaded connection
• High-strength rare earth magnetic system
• Designed for attachment to suitable ferromagnetic steel
• Removable and repositionable mounting solution
• No drilling or welding into the supporting steel surface required
• Compact design for space-conscious installations
• Suitable for industrial, commercial and engineering applications

Common Applications

• Industrial equipment mounting
• Machinery and fabrication
• Temporary fixtures
• Positioning systems
• Steel frame attachments
• Workshop equipment
• Manufacturing fixtures
• Signage and displays
• Custom brackets and supports
• OEM magnetic assemblies

M8 Thread for Secure Equipment Attachment

The integrated M8 thread provides a practical connection point for compatible threaded components.

Depending on the application, the magnetic fixing plate can be combined with:

• Brackets
• Handles
• Supports
• Fixtures
• Equipment accessories
• Threaded rods
• Custom mounting hardware

The threaded connection allows a component to be mechanically secured to the magnetic base while retaining the convenience and flexibility of magnetic attachment to the supporting steel surface.

Always confirm the M8 thread type, available thread engagement and component compatibility before installation.

Why Choose a Neodymium Magnetic Fixing Plate?

Neodymium Iron Boron (NdFeB) is one of the strongest commercially available permanent magnetic materials, providing excellent magnetic strength relative to its compact size.

The 50mm diameter magnetic base provides a useful contact area for engaging suitable steel, while the 25mm height creates a compact mounting profile.

Unlike permanent mechanical fasteners, a magnetic fixing plate allows equipment to be installed, removed and repositioned without repeatedly drilling, welding or permanently modifying the supporting steel surface.

Technical Specifications

• Product Type: Neodymium Magnetic Fixing Plate
• Magnetic Material: Neodymium Rare Earth / NdFeB
• Magnet Type: Permanent Magnet
• Shape: Round
• Diameter: 50mm
• Height: 25mm
• Thread: M8
• Connection Type: Threaded
• Mounting Method: Magnetic attachment to ferromagnetic steel
• Primary Function: Removable magnetic mounting and fixing
• Typical Applications: Machinery, fixtures, fabrication, equipment and custom mounting systems

Removable and Repositionable Magnetic Mounting

The D50mm M8 magnetic fixing plate provides a convenient alternative to permanent mounting hardware in applications where equipment may need to be moved, adjusted or removed.

Potential uses include:

• Temporary equipment installations
• Adjustable fixtures
• Prototype development
• Workshop setups
• Machinery accessories
• Frequently repositioned equipment
• Removable signs and displays
• Custom magnetic mounting systems

When requirements change, the magnetic base can be repositioned without creating additional holes or permanent modifications to the supporting steel structure.

Getting the Best Magnetic Holding Performance

For maximum magnetic performance, the fixing plate should make direct, flat contact with clean and sufficiently thick ferromagnetic steel.

Holding strength can be reduced by:

• Thin steel
• Paint and protective coatings
• Rust, dirt or surface contamination
• Air gaps
• Curved or uneven surfaces
• Sideways or shear loading
• Peeling forces

Where a pull-force rating is provided separately, it will generally represent controlled direct-pull testing against clean, thick and flat steel. Practical holding capacity may be significantly lower under real-world conditions.

Industrial and Engineering Applications

The combination of a 50mm neodymium magnetic base, M8 threaded connection and 25mm height makes this fixing plate suitable for manufacturers, engineers, fabricators, maintenance teams and tradespeople requiring a compact but strong magnetic mounting point.

It can be used on compatible steel machinery, fabrication tables, structural frames, industrial equipment and other ferromagnetic surfaces, provided the complete installation is suitable for the intended load and operating environment.

Please Note

This is a powerful neodymium magnetic assembly and should be handled carefully. Keep fingers clear when positioning the fixing plate against steel, as sudden magnetic attraction can create a pinch or crush hazard.

Always ensure the M8 threaded connection is correctly engaged and securely fastened before use.

Actual magnetic holding performance depends on steel thickness and grade, surface condition, contact area, air gaps and direction of applied force. Sideways, shear and peeling forces can substantially reduce effective holding capacity compared with direct pull.

This magnetic fixing plate should not be used as certified lifting equipment, an overhead suspension point or a safety-critical mounting device unless the complete installation has been appropriately engineered and tested for that purpose.

Keep strong neodymium magnets away from children, pacemakers, medical implants, magnetic storage media and sensitive electronic equipment.
