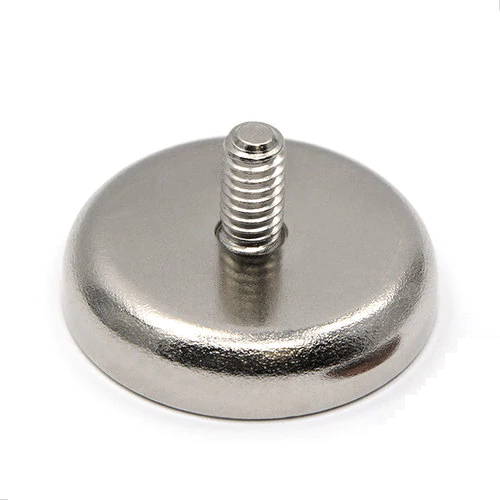

Neodymium Pot Magnet – 32mm Diameter with Male Thread | M6 x 15mm

The Neodymium Pot Magnet – 32mm Diameter with Male Thread | M6 x 15mm is a powerful rare earth male threaded pot magnet designed for magnetic holding, mounting and attachment applications. Featuring a 32mm diameter magnetic base and an M6 male thread extending 15mm, this pot magnet combines strong permanent magnetic attraction with a practical threaded connection for integration into machinery, brackets, fixtures and custom assemblies.

Manufactured using high-performance Neodymium Iron Boron (NdFeB) magnetic material, the magnet is incorporated into a steel pot housing that helps protect the brittle magnetic material and concentrate magnetic flux towards the active working face. This pot-style construction provides effective holding when positioned directly against suitable ferromagnetic steel.

The extended M6 x 15mm male thread provides additional thread length for attaching compatible nuts, washers, brackets and threaded components, making this 32mm neodymium pot magnet a versatile choice for industrial, engineering, manufacturing, signage and equipment-mounting applications.

Key Features

• Powerful neodymium rare earth pot magnet
• 32mm diameter magnetic base
• M6 male thread
• 15mm thread length
• Extended threaded stud for mechanical attachment
• Neodymium Iron Boron (NdFeB) magnetic material
• Steel pot housing
• Pot design concentrates magnetic flux towards the working face
• Permanent magnetic operation – no electrical power required
• Suitable for removable and repositionable mounting
• Compact design for industrial and engineering applications

Common Applications

• Industrial magnetic mounting
• Machinery and equipment
• Manufacturing fixtures
• Jigs and positioning systems
• Signage and displays
• Removable panels
• Sensor mounting
• Brackets and supports
• Automation equipment
• Workshop fixtures
• OEM products
• Custom magnetic assemblies

M6 x 15mm Male Thread

The integrated M6 male threaded stud extends 15mm, providing a practical mechanical connection point for incorporating the magnet into a wide range of equipment and mounting systems.

The male thread can be used with compatible:

• M6 nuts
• Washers
• Brackets
• Handles
• Fixtures
• Threaded equipment
• Custom fabricated components

The 15mm thread length is particularly useful where greater thread engagement or additional clearance is required between the magnetic base and the attached component.

Always confirm thread compatibility and ensure adequate thread engagement for the intended application.

How Does a Neodymium Pot Magnet Work?

A neodymium pot magnet combines a powerful permanent magnet with a surrounding steel housing or cup.

The steel pot helps redirect and concentrate the magnetic field towards the exposed working face. This configuration creates effective magnetic attraction at the contact surface while also providing additional mechanical protection around the neodymium magnet.

For optimum holding performance, the active magnetic face should make direct, flat contact with clean and sufficiently thick ferromagnetic steel.

Why Choose a Male Threaded Pot Magnet?

Male threaded pot magnets provide a convenient combination of magnetic attachment and mechanical fastening.

Rather than permanently drilling or welding the supporting steel surface, the magnetic base can be positioned directly against compatible steel and removed or repositioned when required.

The protruding male thread provides a straightforward method for connecting another component to the magnetic base, making these magnets useful for applications such as:

• Removable fixtures
• Adjustable equipment
• Temporary signage
• Machine accessories
• Positioning systems
• Custom magnetic mounts

Because the magnetic field is permanent, no battery, wiring or external electrical supply is required.

Steel Pot Housing

The steel housing surrounding the neodymium magnet performs two important functions.

First, it provides additional physical protection around the magnetic material. Second, it helps channel the magnetic field towards the active face, improving the effectiveness of the magnetic assembly when used against suitable steel.

The working face should remain as close as possible to the target surface, as magnetic attraction decreases significantly as the distance between the magnet and steel increases.

Technical Specifications

• Product Type: Male Threaded Neodymium Pot Magnet
• Alternative Names: Male Thread Pot Magnet, Threaded Rare Earth Pot Magnet, Neodymium Mounting Magnet
• Magnetic Material: Neodymium Iron Boron (NdFeB)
• Magnet Type: Rare Earth Permanent Magnet
• Shape: Round
• Diameter: 32mm
• Thread: M6 Male
• Thread Length: 15mm
• Housing: Steel Pot
• Power Requirement: None
• Primary Function: Magnetic holding, fixing and mounting
• Typical Applications: Machinery, fixtures, signage, automation and custom magnetic assemblies

Industrial and Engineering Applications

The combination of a 32mm diameter magnetic base and extended M6 x 15mm male thread makes this neodymium pot magnet particularly useful for integrating magnetic attachment into mechanical equipment.

Potential users include:

• Manufacturers
• Engineers
• Fabricators
• Machinery builders
• Maintenance teams
• Sign installers
• Display manufacturers
• OEM equipment designers

The magnet can be incorporated into purpose-built brackets, handles, fixtures and other assemblies where a strong but removable connection to ferromagnetic steel is required.

Getting the Best Magnetic Holding Performance

Actual magnetic performance depends heavily on the installation conditions.

For the strongest possible attraction:

• Use clean, flat ferromagnetic steel
• Maximise contact across the magnetic working face
• Use sufficiently thick steel
• Minimise paint, coatings and other air gaps
• Keep the contact surfaces free from rust and debris
• Avoid uneven or curved mating surfaces
• Consider the direction of the applied load

Magnetic holding is generally strongest under direct-pull conditions. Sideways, vertical, shear and peeling forces can result in substantially lower holding performance.

Please Note

No specific pull-force rating has been provided here for this 32mm M6 x 15mm pot magnet, so a holding capacity should not be assumed from its dimensions or appearance alone.

Neodymium magnets are powerful but hard and brittle. Avoid dropping, striking, machining or allowing the magnetic assembly to snap uncontrollably against steel or another magnet.

The M6 threaded stud should be connected to compatible components without applying excessive mechanical force to the magnetic assembly.

Do not use this product for lifting people, overhead suspension or safety-critical load holding unless the complete system has been appropriately engineered, tested and rated for the application.

Keep strong magnets away from children, pacemakers, medical implants, magnetic storage media and sensitive electronic equipment.
