Male Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with 15mm Boss and Rubber Case
Couldn't load pickup availability
Product details
- SKU RCND66M
-
Pull Force*
18kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight102.2 gm
- GradeN35
- CoatingSantoprene Rubber
- Direction of MagnetisationAxially magnetised (top to bottom) through 8mm thickness.
- DimensionsThickness:8mm, Diameter:66mm
Magnetic Product Description

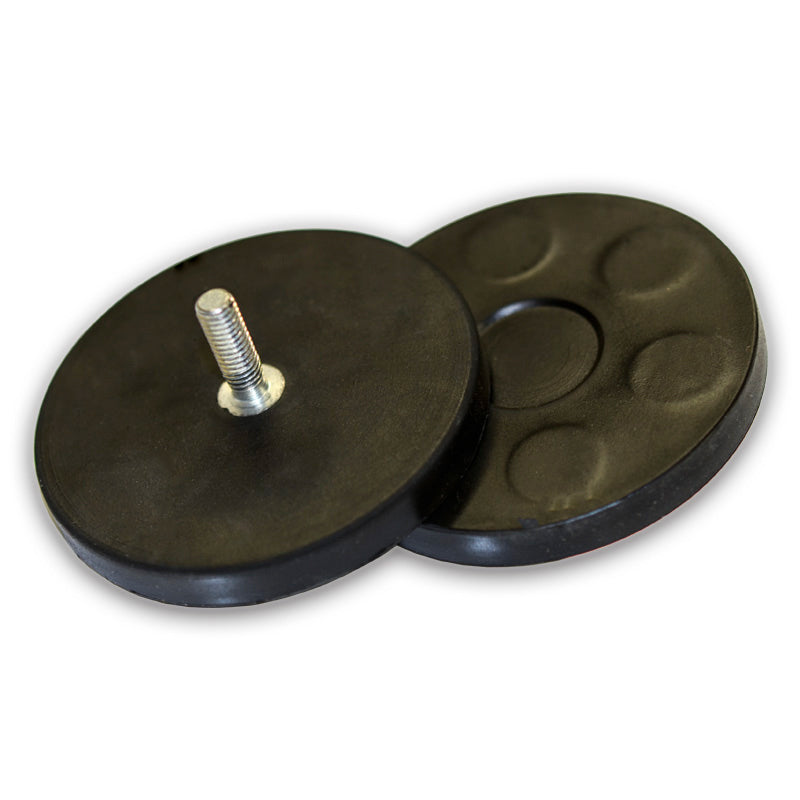

With Neodymium magnetic core, this product has a strong pull force of 18kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 66mm, a 8mm thickness, 15mm high M8 male threaded and external boss. The product is identified by AMF Part Number RCND66M.
Uses for our Male Thread Neodymium Pots with Rubber Casing:
This robust holding device contains a circular arrangement of six strong Neodymium disc magnets with a singular steel cap that increases its overall holding strength at the base. The steel cap also contains the Male Thread attachment point that allows the device to be fixed to another material or piece of equipment with a nut and washer. The device is rubber coated so the contact area cannot damage the surface it attaches to, which helps to protect glass panels and paint finishes on vehicles and equipment from dents and scratches that would otherwise become rusty, weaker and unattractive. This handy device makes it possible to attach accessories and equipment to vehicles or any other metal surface magnetically. Equipment such as rearview mirrors, trailer lights, sun shades, awnings and the like can be fitted to steel panels and removed without damaging the paint or penetrating the steel body. Magnetic attachment is simple, reliable and convenient and operates in a non-invasive way that allows important equipment or even decorative items to be attached, removed or replaced quickly. These rubber coated holding magnets from AMF protect the paint on metal surfaces from scratching and chipping.
