Female Thread Neodymium Rubber Coated Pot Magnet - Diameter 88mm x 8mm | M5 Internal Thread
Couldn't load pickup availability
Product details
- SKU RCND88F(M5)
-
Pull Force*
42 kg
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
- Weight157.5 gm
- StyleRare Earth female thread pot magnet
- GradeN35
- CoatingSantoprene Rubber
- Direction of MagnetisationAxially magnetised through the 8mm
- DimensionsHeight:8.3mm, Diameter:88mm
Buying in Bulk?
Contact Us for Wholesale Pricing
Magnetic Product Description:

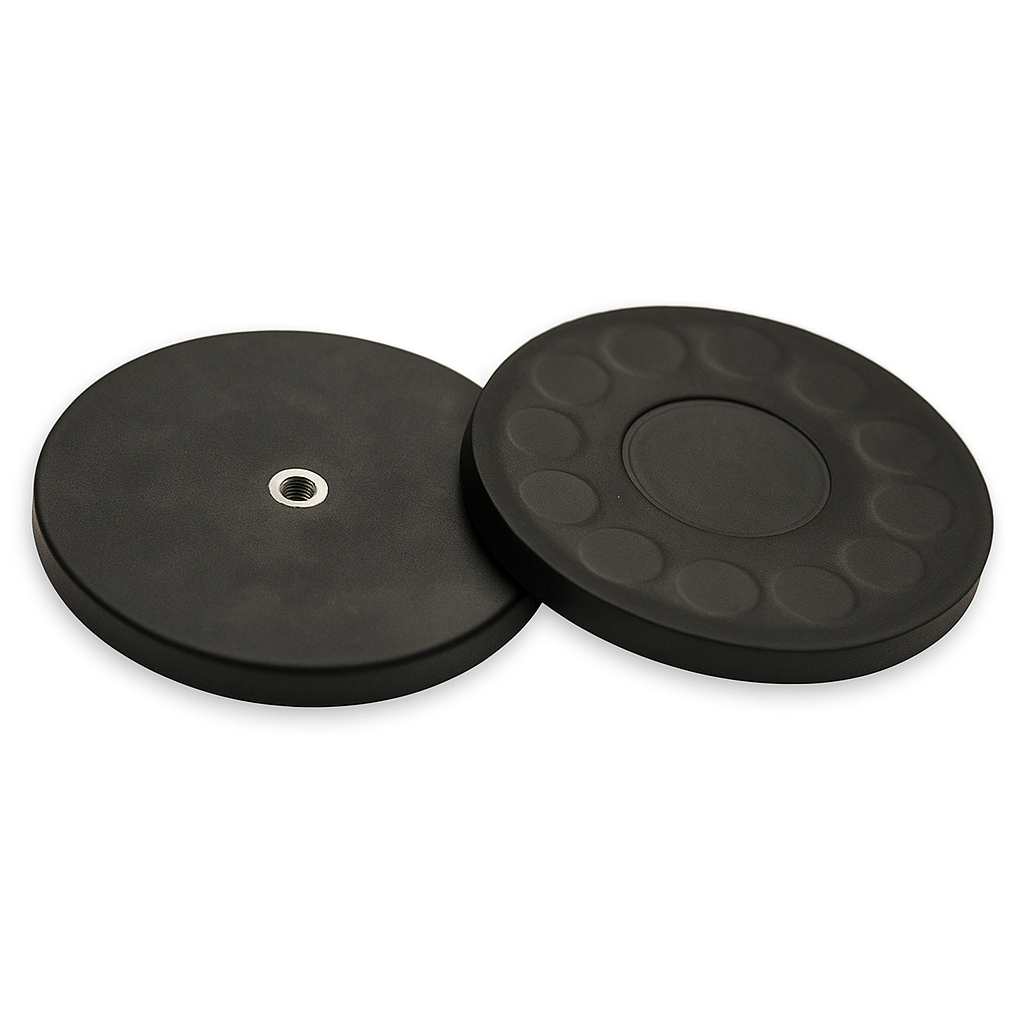

This rare earth pot magnet features an 88mm diameter and 8.3mm thickness, equipped with an M5 female thread. Its Santoprene rubber coating safeguards sensitive surfaces from damage. Delivering a pull force of 42kg and weighing 210 grams, this magnet is catalogued under AMF Magnetics part number RCND88F(M5).
Threaded hooks and eyelets are sold separately for this product, if required. Get in touch with us for pricing.
Uses for our Rare Earth female thread pot magnets:
These Rubber Coated Neodymium Pot magnets have a Female Thread allowing them to be attached to other materials with a bolt. The rubber coating also resists corrosion and protects easily scratched surfaces from damage. These Pot magnets can accept an eyelet or hook screwed into its threaded central void, for suspending outdoor equipment, heavy-duty gate and door latching, hanging signage and suspending guide ropes or barriers magnetically from metal structures without nails, screws, wire or glue. The rubber coating protects painted surfaces from scratching and offers substantial long-term resistance to corrosion. Farmers, fishers, campers, food-truck operators, and emergency workers are able to, at a moment’s notice, create a fixing point on the outside of their vehicles for stringing up hazard tape or securing signage, lighting, public address and. sound systems, cooking equipment or any other paraphernalia they need.
