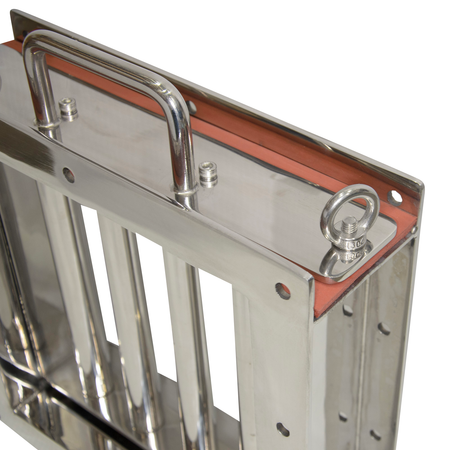

Drawer Grate Magnet – 260mm x 260mm | Min 10,000 Gauss

The Drawer Grate Magnet is an essential tool in a range of industries where product purity and strict compliance measures are mandatory. Industries like food and pharmaceutical processing, recycling industries and plastics manufacture all rely on these powerful drawer grate magnets.

The drawer gate magnets are powered by strong Neodymium magnets, which are up to six times stronger than more familiar ceramic magnets. The powerful Neodymium magnets are essential components in process filtration of ferrous material for these industries. With its minimum 10,000 Gauss, this magnetic device ensures that iron particles are effectively captured before they compromise the quality of the product. Contaminants such as metal shavings, rust and fine iron dust can be a major concern in industrial processes, making this grate magnet a crucial solution for maintaining high safety and quality standards.

In food production, even the smallest metal fragments can pose serious health risks and lead to costly recalls. In plastic manufacturing, metal particles can damage machinery and lead to defects in the product. Recycling facilities also benefit from these magnets, as they help separate valuable ferrous materials from unwanted non-ferrous materials, improving the efficiency of sorting processes.

The Drawer Grate Magnet works by incorporating four magnetic bars, each bar centre spaced 50mm apart, with a 25mm gap between each bar to allow for material flow in the manufacturing process. As raw materials pass through the grate, the powerful magnetic field attracts and holds ferrous particles, preventing them from moving further along the production line. The clever design and power of Neodymium means even the finest contaminants are captured.

The Grate magnet is easy to install and maintain, with ferrous materials easily removed using a glove or compressed air. This combination of high performance, ease of use and durability makes it a valuable asset for any industry where product purity and quality control are top priorities.
